Main Features
- Display real time performance of your car, such as momentum,
vehicle speed, oil pressure, coolant temperature, engine load,
intake manifold pressure, throttle position and air intake
temperature.
- If the communication is terminated, this item will automatically
switch to sleep mode in half a hour.
- The adapter adopts fast and reliable chips which promise its
stable wireless connection.
- It supports all OBDII protocols: J1850 VPW, J1850 PWM, IS09141 -
2, KWP2000 and CAN
- Small size and compact structure, plug and play.

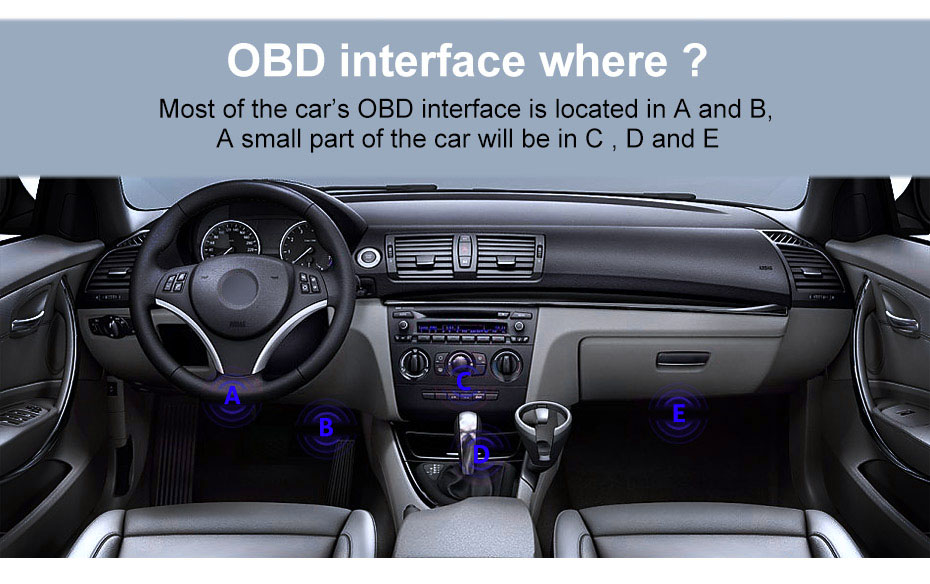

The device is a small adapter that plugged into the vehicle OBDII
connector via bluetooth, it is suitable for android smart phone or
Windows PC. With associated diagnostic procedures, Free obd
software provided in the package ). With this product, you will be
able to perform a complete computer diagnostic car and even to
correct minor faults without resorting to service stations.
Protocols :
0. Automatic T 1.SAE J1850 PWM(41.6Kbaud)
2. SAE J1850 VPW(10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP(fast init,10.4 Kbaud)
6. ISO15765-4 CAN(11bit ID,500 Kbaud)
7. ISO15765-4 CAN(29bit ID,500 Kbaud)
8. ISO15765-4 CAN(11bit ID,250 Kbaud)
9. ISO15765-4 CAN(29bit ID,250 Kbaud)
A. SAE J1939 CAN(29bit ID,250*Kbaud)
B. USER1 CAN(11*bit ID,125*Kbaud)
C. USER2 CAN(11*bit ID,50*kbaud)
Default settings(user adjustable)
OBD-II Software for ELM327 bluetooth is a free program that allows
you to use your PC and a hardware interface to get the information
from your car's computer.
The program is very user-friendly, and easy to learn. It is also
very easy to install: simply extract the files into a folder on
your computer's hard drive, and you're ready to go. To uninstall
the program, simply delete the entire contents of the folder where
the program resides.
The program lets you perform the following operations
1. Read diagnostic trouble codes, both generic and
manufacturer-specific, and display their meaning (over 3000 generic
code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
