Universal Car Diagnostic Test Tools Auto OBD2 Scanner Diagnosis
Tool for All Cars

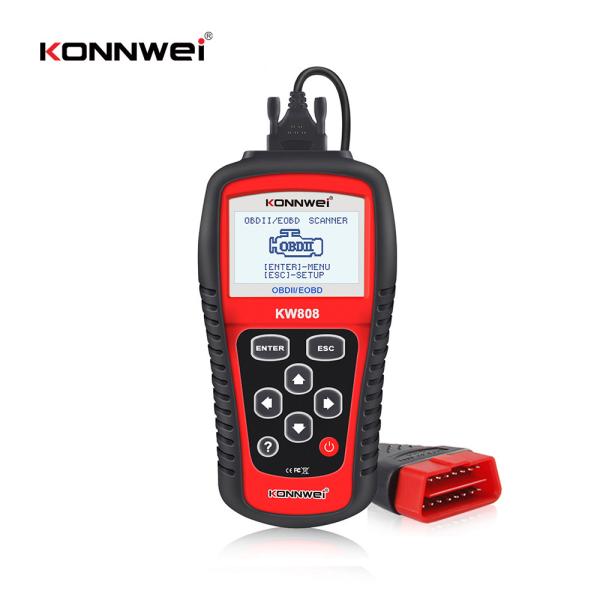

KW808 diagnostic car scanner parameters:
| Item type | diagnostic car scanner |
| Housing material | ABS |
| Housing color | Black+red |
| Quality | 100% Original Brand |
| Battery test | not support, have others support battery voltage test |
| Upgarde function | not suppoort upgrade, other models support |
| Language | English, French, German, Dutch and Spanish |
| Support protocols | ISO 9141, KWP2000, SAE J1850, CAN, J1850 VPW, J1850 PWM |
KW808 Description:
The KW808 OBDII/EOBD Code Reader supports all nine OBDII test modes
on all OBDII EOBD compliant vehicles to enable
technicians and home users to accurately diagnose even the toughest
problems. Sophisticated yet easy-to-use, this hand-held
scanning tool enables fast and easy access to engine based EOBD
Fault codes, The CAN enabled tool gives clear, concise
DTC definitions on its large back-lit LCD screen retrieves generic
P0, P2 and P3 and U0 codes for engine emissions and also
picks up manufacturer specific P1, P3 and U1 codes, Turns off MIL
light, Stores freeze frame data for later evaluation and will
also display monitor and I/M readiness status.
Specifications:
- Operating temperature: 0 - 60 Deg.C.
- External power: 8 - 18V power provided via vehicle battery.
- Display: Backlit, 128 x 64 pixel display with contrast
adjustment.
- Dimensions: 7 x 3.7 x 1.4 inch.
- Cable length: About 56 inches.
-Material Type: Rubber Plastic
-Package weight: 0.795 kg
-Package Size(L x W x H): 25.00 x 18.50 x 7.00 cm / 9.84 x 7.28 x
2.76 inches
Notice:
This scanner supports all nine OBDII test modes on all OBDII
compliant vehicles to enable technicians to accurately diagnose
even the toughest problems. Sophisticated yet easy to use, this
ergonomic scan tool make your vehicle service experience much more
pleasant!
Highlights:
- Work on all 1996 and later OBDII compliant US, European and Asian
vehicles.
- Retrieves generic ( P0, P2, P3, and U0 ) and manufacturer
specific ( P1, P3, and U1 ) codes.
- Easily determines the cause of the Check Engine Light ( MIL).
- Display monitor and I / M readiness status ( emissions ).
- Memory / battery backup for off-vehicle data review and analysis.
- Supports CAN ( Controller Area Network ) and all other current.
- Built-in OBD-II DTC lookup library.
- Multilingual menu: English, Spanish, French, and German.
- Displays DTC definitions on unit screen.
- Displays live O2 sensor test data.
- Large easy-to-read backlit LCD screen.
Languages & Support Protocol:
5 languages: English, French, German, Dutch and Spanish
Support Protocol: ISO 9141, KWP2000, SAE J1850, CAN, J1850 VPW,
J1850 PWM
Package list:
1pc x KW808 diagnostic car scanner
1pc x 1500mm length OBDII Connecting Cable
1pc x COM Cable for connecting KW808 to PC
1pc x User Manual
More detailed pictures of KW808 Diagnostic Car Scanner
