Wireless Car Diagnostic Scanner Check Engine Lights Fault Codes
OBD2 WIFI Hotspot
KW902 OBD2 wifi hotspot parameters
| Product name | obd2 wifi hotspot |
| Wifi Standard | 802.11a/b/g |
| Power consumption | 0.75 watts |
| Material | ABS |
| Antenna | Internal |
| Display data | Fuel Trim, EVAP System Vapor Pressure etc |
| Languages | English defaulted and can select the language you need |
| Feature | Graphs data |
| Support protocols | ISO 9141, KWP2000, SAE J1850, CAN, J1850 VPW, J1850 PWM |
Description:
CLK is able to detect and interpret these protocols automatically. It
also provides support for high-speed communications and a low-power
sleep mode. It uses AT commands to communicate with a host device
(PC, notebook, iPhone, iPod touch, iPad and so on). There are
plenty of software packages available, which are fully compatible
with CLK. Some of them have pretty useful features, such as engine
running parameters monitoring, DTC reading and clearing, MPG meter,
etc. You can even write your own software on a specified hardware
platform if you wish because the AT commands are fully documented
and very well explained.
CLK is measuring only 2.7 x 1.25x 0.9 inches, and it comes attached
with a 6 ft OBDII cable for easy installation. It also comes
included with a power switch built-in to prevent the need for
having to constantly disconnect your unit from the OBDII port. It
is compatible with 1996 and later vehicles. Connecting to your
iPhone / iPod touch is made by WIFI connection in adHoc mode.

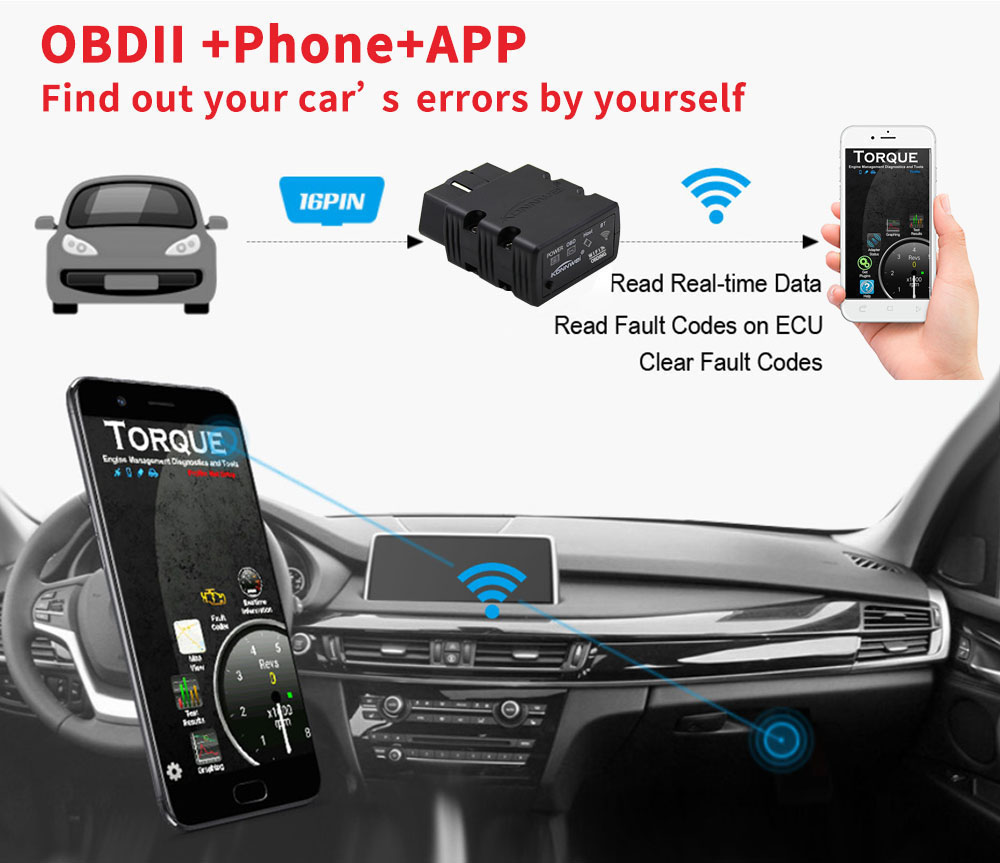

Functions:
1.Read diagnostic trouble codes, both generic and
manufacturer-specific.
2.Display their meaning (over 3000 generic code definitions in the database).
3.Clear trouble codes and turn off the MIL ("Check Engine" light)
4.Display current sensor data, including:
5.Engine RPM
6.Calculated Load Value
7.Coolant Temperature
8.Fuel System Status
9.Vehicle Speed
10.Short Term Fuel Trim
Specifications:
SSID: CLKDevices
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 x 1.25 x 1.2 inches
Package includes:
1x KW902 obd2 wifi hotspot
1x Software CD
1x English User Manual
FAQ:
Q1: Can I make a sample order for KONNWEI obd2 wifi hotspot?
A1: Yes, sample order is welcome for quality test. Mixed samples
are also acceptable.
Q2: What is the lead time?
A2: Samples have stocks ready for shipment, bulk order needs 5-7
days.
Q3: What's your MOQ for order?
A3: The MOQ for KONNWEI brand is only 1pc and if need customize
your own brand, it's 500~1000pcs depends on the models.
Q4: How do you ship the goods and how long does it take to arrive?
A4: Usually shipping by express like DHL, UPS, FedEX, taking about
4-6 days or by boat about 25-30 days according to the country you
are in.
Here are more pictures for you to learn our KW902 OBD2 wifi hotspot
