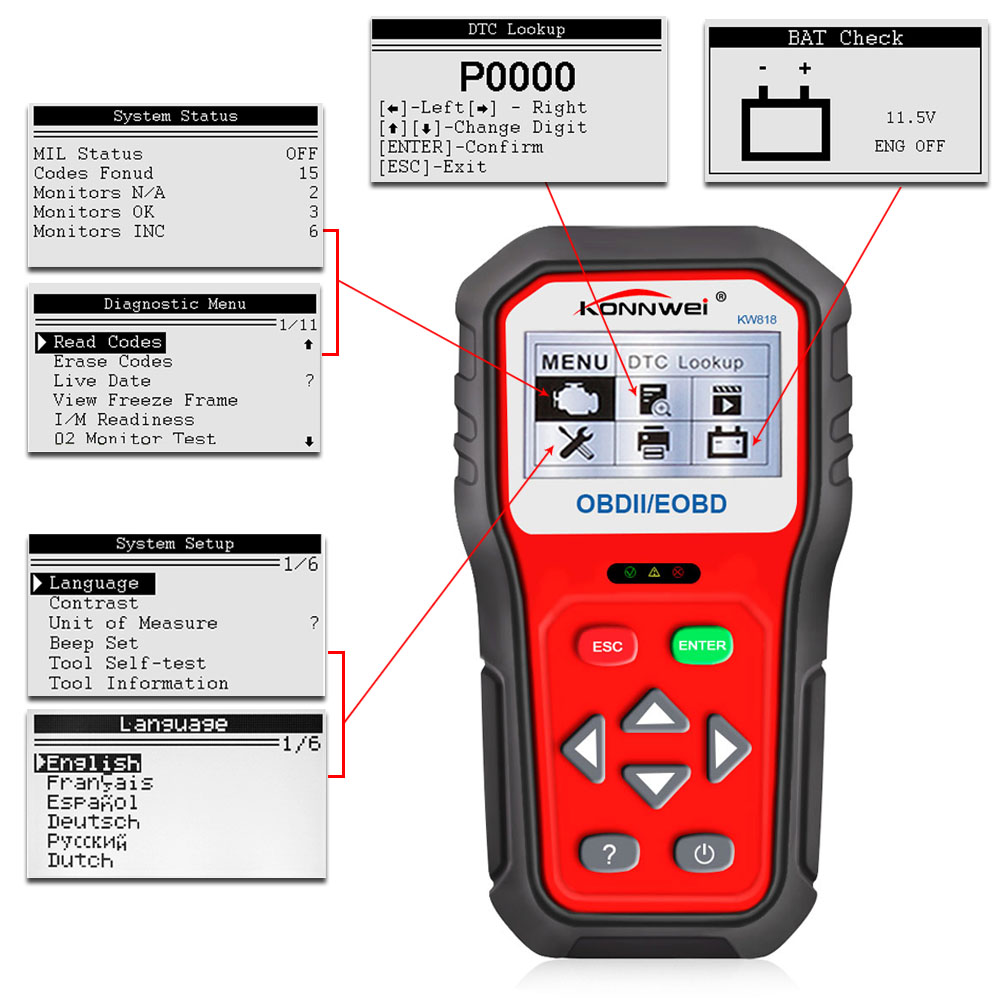

12V OBD2 EOBD Engine Code Reader Scan Tool Multi Function
Automotive Diagnostic Scanner KW818
Description Details Introduce
*I/M Readiness, TFT color display and built-in speaker.
*The KW818 is truly the ultimate in power and affordability, users
jobs faster.
*Thousands of troubleshooter code tips help technicians to save
diagnosis and repair time.
*KONNWEI KW818 OBDII/EOBD scanner supports all 10 modes of OBDII
test for a complete diagnosis.
| Application | Can detect 12V gasoline and diesel cars |
| Language | English,French,German,Russian,Dutch,Spanish |
| System | XP WIN7 WIN8 WIN10 |
Battery
function | support detect battery voltage |
| Protocol | ISO 9141, KWP2000, SAE J1850, CAN,J1850 VPW,J1850 PWM |
| Warranty | 2 years |
| Feature | Displays monitor and I/M readiness status (emission status) |
| Size | 20*10*4cm |
| Package size | 25*18*8cm |
| Item Net weight | 0.665kg |
| Package Gross weight | 0.77kg |
| Qty/cn | 25pcs/cn |
| Carton size | 55*39*46cm |
| Carton Weight | 20kg/carton |
Features
Works on all 1996 and later OBDII compliant US, European and Asian
vehicles.
Easily determines the cause of the Check Engine Light ( MIL).
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific
(P1, P3, and U1) codes.
Turns off Check Engine Light (MIL), clears codes and resets
monitors.
Displays DTC definitions on unit screen, views freeze frame data.
Displays monitor and I/M readiness status (emissions).
Identifies pending codes, Reads live PCM datastream.
Displays live O2 sensor test data, Graphs data C (1996 and newer).
Reads, stores & playbacks live sensor data, Performs modules
present test.
Memory/battery backup for off-vehicle data review and analysis.
Retrieves vehicle information (VIN, CIN and CVN), Supports CAN
(Controller Area Network) and all other current
Support Protocol
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
English, Spanish, French, Russian,German, Dutch.
KW818 Supports Free Update
1. Load the CD and install the 'KONNWEI' Program on your computer.
Notice: Please turn off anti-virus software when installing,
otherwise it will not be able to install the driver properly.
2. Connect the KW818 Scanner to PC, Meanwhile press any button of
KW818, you will see below pictures shows
3. Download Latest patch or contact us for latest software , and
select the fls file to update the DTC library; Select the ROM file
to update the program inside the scanner.
4. Wait for the update process finished, the scanner KW818 will be
ready to go! we will update to latest version before shipping out,
normally there is no need to update for a long while.
Package
1*KW818 Scanner
1*1500mm length OBDII Connecting Cable
1*USB
1*User Manual
