16 Pin Konnwei Car Diagnostic Scanner One-click I/M Readiness OBD2
Code Reader
KW818 OBD2 Code Reader parameters:
| Item type | Konnwei Car Diagnostic Scanner |
| Housing material | ABS |
| Housing color | Black |
| Languages | English, French, German, Dutch, Spanish, Russian |
| Battery test | Support Battery voltage test |
| Quick test | Built-in DTC look-up library |
| Application | All 12V cars support OBD2/EOBD protocols |
| Support protocols | CAN, J1850 VPW, J1850 PWM, ISO 9141, KWP2000, SAE J1850 |
KW818 Production Description:
KONNWEI KW818 OBDII/EOBD Scanner supports all 10 modes of OBDII
test for a complete diagnosis. Featuring the unique patented
One-Click I/M Readiness Key, TFT black white display and built-in
speaker, the KW818 is truly the ultimate in power and
affordability, allowing users to do their jobs faster. In addition,
thousands of troubleshooter code tips help technicians to save
diagnosis and repair time.
Functions & features:
1. Read and erase fault code from engine, find out failure reason
for check engine light coming on.
2. Turns off Check Engine Light (MIL), warning light, clears codes
and resets monitors
3. Directly show definition of OBDII Codes, without check online.
4. Displays monitor and I/M readiness status (emission status)
5. Reads and display live PCM data stream, live sensor readings, up
to 50 PID/S, and show it in graphical mode.
6. Views freeze frame data to analyze the real cause of engine
failures
7. Displays live O2 oxygen sensor test data
8. Enhanced OBD2 Mode 6 On Board Monitoring Test Results for
Specific Monitored Systems.
9. EVAP System test data
10. Retrieves vehicle information (VIN code, CIN and CVN Number)
11. 12V car battery status check, compare with user manual to
verify if your battery need to be replacement.
12. Data stream storage, and playback even off vehicles.
13. Allows you to print out 3 kinds of stored data: DTCs, Freeze
frame, Live sensor readings. DIY your diagnostic reports available.
14. Troubleshooter code tips guide you to find the root cause of a
trouble code faster, save diagnosis and repair time.
15. Retrieves vehicle information (VIN, CIN and CVN)
16. Internet updateable and upgradeable
17. Prints data via PC.
Application:
Use a test a wide range of 12v batteries(Starting{SLI},Deep Cycled
and Marine) of Wet(Flooded),VRLA or Maintenance Free (MF),Sealed
Maintenance Free (SMF), Absorption Glass Mat(AGM),EFB and GEL Cell.
The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and
IEC are supported.
KW818 Prints out data to PC:
1. After install the "uplink" program on PC, connect the scanner to
PC with USB cable. (No need to press any buttons)
2. Launch the program"uplink" , Select "Print" option.
3. Operation on scanner: go to main menu, select " Print Data" ;
Select the data option that you want to print to PC,
4. After select the "print data", the data stream that storaged in
the scanner will be sent to PC software, you may modify them before
printing them out from PC's printer.

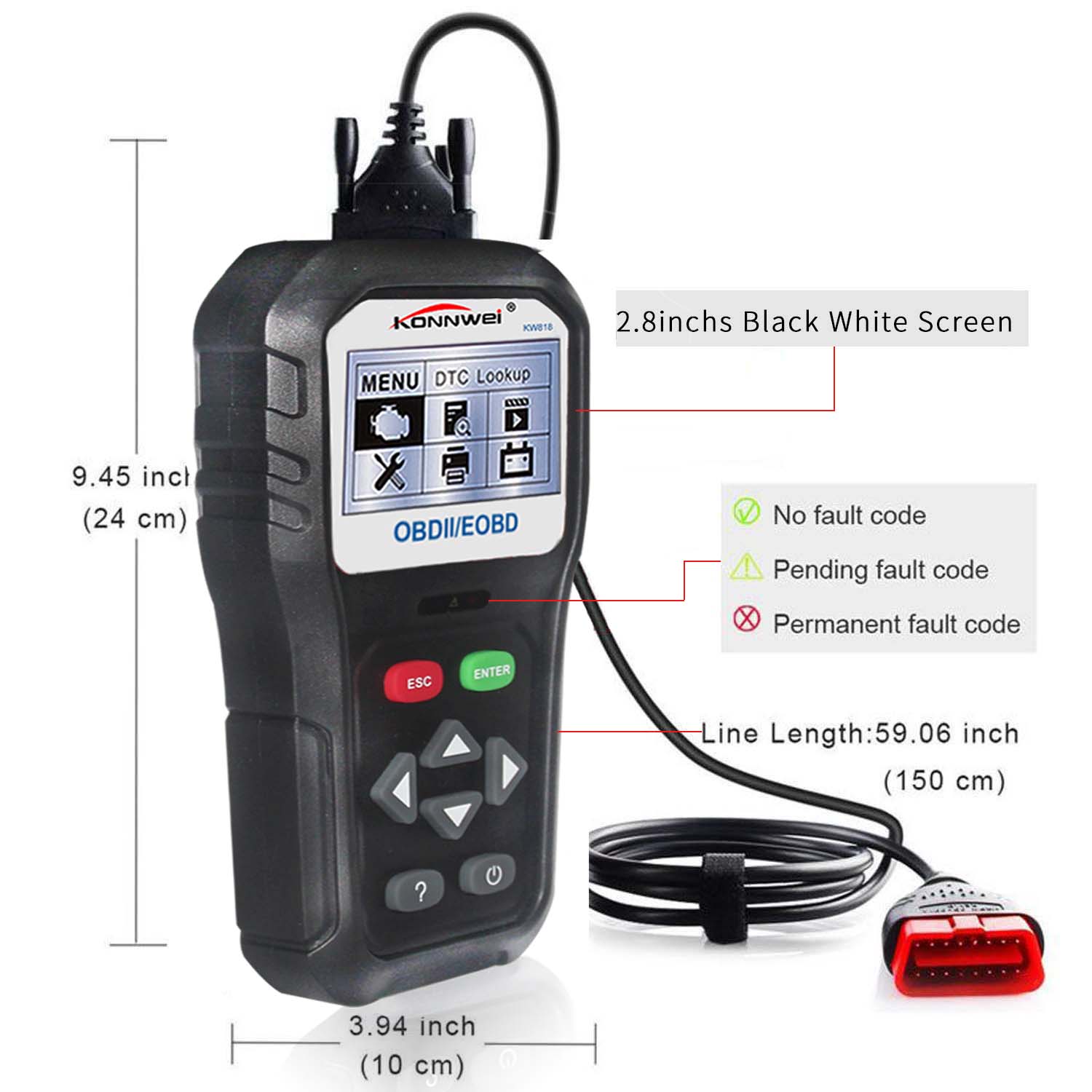

More detailed pictures of KW818 OBD2 Code Reader:
