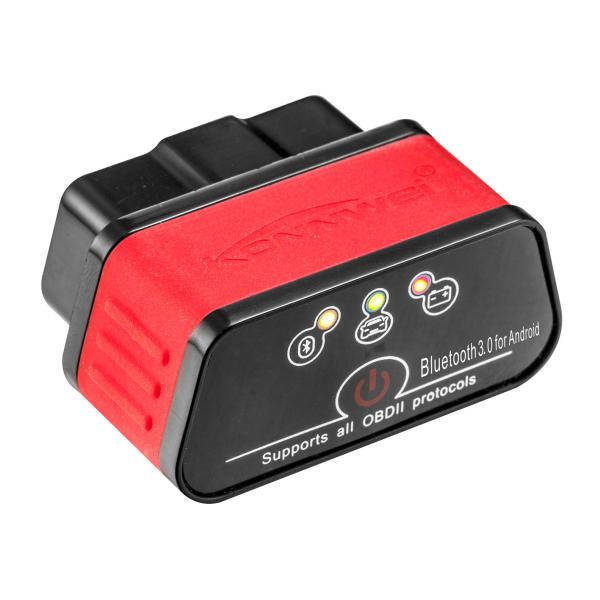

KONNWEI KW903 Newest Bluetooth OBD2 Scanner ELM327 V1.5 for Android
Windows
| Product name | KONNWEI KW903 bluetooth diagnostic scanner |
| Model | KONNWEI KW903 BT |
| Connection |
KONNWEI KW903 bluetooth diagnostic scanner
Only fit for anroid phone , Android is free turque app |
| Color | 6 Color : Black White/ White Red/Black / Black Orange/Black Red/
Red |
| Usage | Auto Testing Machine, Environment-simulated Test Chamber |
| Power | Electronic, test the conductor, 12V 0.5-1W |
| Material | ABS housing , Hard Box , Neylon bag |
| package size (cm) | 12*7.5*4 |
| Item Net weight(kgs) | 0.048 |
| Package Gross weight(Kg) | 0.1 |
| Quantity/cn | 100pcs/ cn |
| Carton size(cm) | 39*25.5*36cm |
| Carton Weight | 10.65KG/ carton |
LCD Screen
Size(Inch) | Mni dongle/ without Screen |
| Application | For all 12V cars battery such as vehicles car/ gasoline cars/Hybrid
electric vehicle |
| IC Chip | 25k80( it is the most stable chip on market ) |
| Factory price | $6.8-$7.6 |
| MOQ | 1PC |
| Language | English is default language, please select the language you need on
phone settings interface |
| System | XP WIN7 WIN8 WIN10 |
| Protocol | 9 protocol: CAN,ISO 9141, KWP2000, SAE J1850,J1850 VPW,J1850 PWM |
| Type | Engine Analyzer, Code Reader, Professional Auto Diagnostic Tool,
Digital Camera, automotive diagnostic tool |
| Voltage | 12V |
| Warranty | 12 months |
| Applicable models | for all kinds of 12v car such as gasoline /diesel //Hybrid electric
vehicle , as see Rover, all cars, Porsche, Saab, Peugeot etc |
| Power | 0.77w 1w 12v |
| Product name | konnwei obd2 scanner , MB Star C3, FCAR F3-G Heavy Duty Truck
Scanner, Automobile inspection multimeter, XTOOL X300 Plus, OBD2 /
EOBD 16 pin car computer auto diagnostic tool / engine analyzer |
| Special features | Diagnostic Fault Code, Bluetooth , Improved, Waterproof |
| Function | Professional Diagnose Tool, Automotive Diagnostic Scan Tool Code
Reader car scanner tool, read trouble code, Test for car, Stable |
| Item type | OBD Code Reader, Auto diagnostic tool, Car Engine Scanner,
Connectors, Auto Key Programmer |
| Connection | Standard OBD II,Bluetooth ,Android , 16-pin Diagnostic Connector |
| Quality | 100% Original konnwei Brand |
| Version | 2019 Newest, V1.5 , Bluetooth 3.0 , torque free |
The device is a small adapter that plugged into the vehicle OBDII
connector via bluetooth, it is suitable for android smart phone or
Windows PC. With associated diagnostic procedures, Free obd
software provided in the package ). With this product, you will be
able to perform a complete computer diagnostic car and even to
correct minor faults without resorting to service stations.
Main features
- Display real time performance of your car, such as momentum,
vehicle speed, oil pressure, coolant temperature, engine load,
intake manifold pressure, throttle position and air intake
temperature.
- If the communication is terminated, this item will automatically
switch to sleep mode in half a hour.
- The adapter adopts fast and reliable chips which promise its
stable wireless connection.
- It supports all OBDII protocols: J1850 VPW, J1850 PWM, IS09141 -
2, KWP2000 and CAN
- Small size and compact structure, plug and play.
Protocols :
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
Default settings(user adjustable)
With proper software installed in the host device, you may have
following parameters read out from your vehicle:
Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim
Packing list
1 * KW901
1 * User's manual
1 * CD
Color Choice :
6 Color :Black Red/Black/Black Orange/ Black White/Red/ Red White
