universal car diagnostic tool obd2 code reader bluetooth car
diagnostic tool car diagnosis machine
| Application | Can detect 12V gasoline and diesel cars |
| IC Chip | 25K80 Chip |
| Color | 6 Color:
Black White/ White Red/Black / Black Orange/Black Red/ Red |
| Languages | English is default language, please select the language you need on
phone settings interface |
| Support systems | both android and apple are available. Android is free turque but
ios is unfree dashcommand;
Don't support upgrade system and print |
Battery
function | don't support battery test function |
| Support protocols |
ISO 9141
KWP2000
SAE J1850
CAN
J1850 VPW
J1850 PWM |

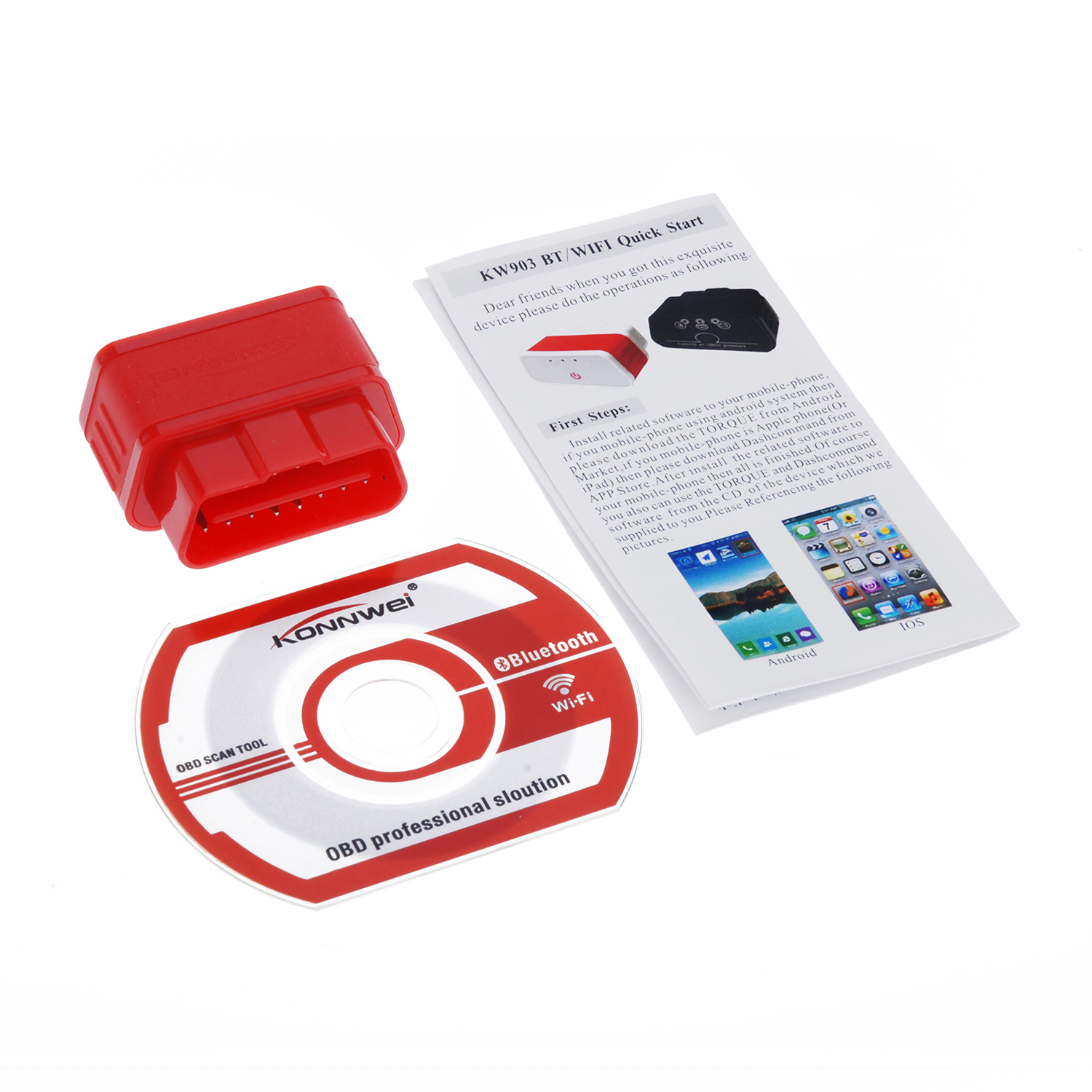

| Packing list | 1x KW903 Bluetooth Scann1x Software CD1x English User Manual |
| Package Info | Item Size:
Package Size :12*7.5*4cm
Net Weight :0.03kg
Gross Weight:0.084kg
Qty/Ctn: 100pcs/ Ctn
Carton Size: 39*25.5*36cm
Carton Weight: 8.9KG/carton |
| Main features | KW903 able to detect and interpret these protocols automatically.It
also provides support for high speed communications and a low power
sleep mode.It use AT commands to communicate with a host device
(PC, notebook, , iPod touch, iPad and so on). |
OBD-II Software for ELM327 bluetooth is a free program that allows
you to use your PC and a hardware interface to get the information
from your car's computer.
The program is very user-friendly, and easy to learn. It is also
very easy to install: simply extract the files into a folder on
your computer's hard drive, and you're ready to go. To uninstall
the program, simply delete the entire contents of the folder where
the program resides.
The device is a small adapter that plugged into the vehicle OBDII
connector via bluetooth, it is suitable for android smart phone or
Windows PC. With associated diagnostic procedures, Free obd
software provided in the package ). With this product, you will be
able to perform a complete computer diagnostic car and even to
correct minor faults without resorting to service stations.
The program lets you perform the following operations
1. Read diagnostic trouble codes, both generic and
manufacturer-specific, and display their meaning (over 3000 generic
code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
Protocols :
0. Automatic T 1.SAE J1850 PWM(41.6Kbaud)
2. SAE J1850 VPW(10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP(fast init,10.4 Kbaud)
6. ISO15765-4 CAN(11bit ID,500 Kbaud)
7. ISO15765-4 CAN(29bit ID,500 Kbaud)
8. ISO15765-4 CAN(11bit ID,250 Kbaud)
9. ISO15765-4 CAN(29bit ID,250 Kbaud)
A. SAE J1939 CAN(29bit ID,250*Kbaud)
B. USER1 CAN(11*bit ID,125*Kbaud)
C. USER2 CAN(11*bit ID,50*kbaud)
Default settings(user adjustable)
The device is a small adapter that plugged into the vehicle OBDII
connector via bluetooth, it is suitable for android smart phone or
Windows PC. With associated diagnostic procedures, Free obd
software provided in the package ). With this product, you will be
able to perform a complete computer diagnostic car and even to
correct minor faults without resorting to service stations.
