    KONNWEI cheaper price model KW912 ELM327 wireless bluetooth 12V car OBD2 EOBD

    Ask Lasest Price
    Brand Name : KONNWEI
    Model Number : KW912
    Certification : CE FCC ROHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000 pieces/ day
    Delivery Time : within 7 days
    • Product Details
    • Company Profile

    KONNWEI cheaper price model KW912 ELM327 wireless bluetooth 12V car OBD2 EOBD

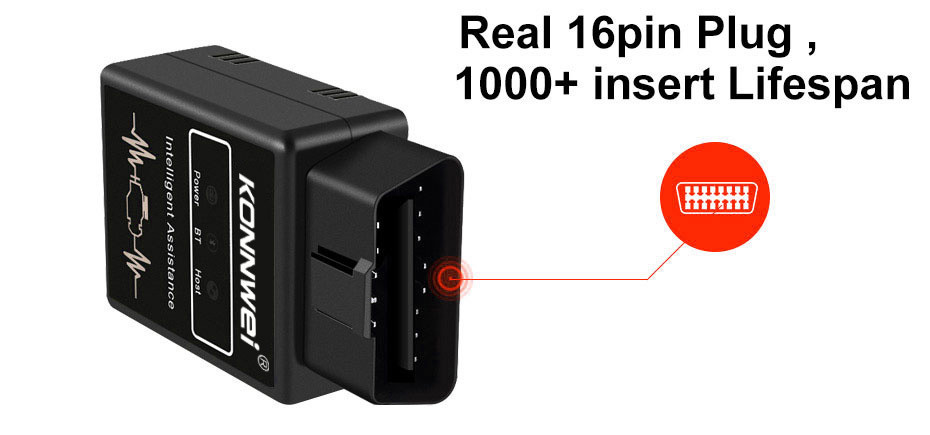

    Multi-function 16 pin plug car diagnostic scanner tool bluetooth obd2 KW912 work on android devices free


    Item No.KW912 bluetooth
    BrandKONNWEI
    SystemAndroid
    Coloronly one color,black
    LanguageEnglish is default language,you could select the language you like in your mobile interface
    ProtocolOBD II and EOBD,it could not support JOBD
    FeatureReview data on your android mobile phone

    The device is a small adapter that plugged into the vehicle OBDII connector via bluetooth, it is suitable for android smart phone or Windows PC. With associated diagnostic procedures, Free obd software provided in the package ). With this product, you will be able to perform a complete computer diagnostic car and even to correct minor faults without resorting to service stations.


    Main features of Multi-function 16 pin plug car diagnostic scanner tool bluetooth obd2 KW912 work on android devices free


    - Display real time performance of your car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position and air intake temperature.

    - If the communication is terminated, this item will automatically switch to sleep mode in half a hour.

    - The adapter adopts fast and reliable chips which promise its stable wireless connection.

    - It supports all OBDII protocols: J1850 VPW, J1850 PWM, IS09141 - 2, KWP2000 and CAN

    - Small size and compact structure, plug and play.


    Protocols of Multi-function 16 pin plug car diagnostic scanner tool bluetooth obd2 KW912 work on android devices free:


    0. Automatic

    1. SAE J1850 PWM(41.6Kbaud)

    2. SAE J1850 VPW(10.4Kbaud)

    3. ISO9141-2(5 baud init,10.4Kbaud)

    4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)

    5. ISO14230-4 KWP(fast init,10.4 Kbaud)

    6. ISO15765-4 CAN(11bit ID,500 Kbaud)

    7. ISO15765-4 CAN(29bit ID,500 Kbaud)

    8. ISO15765-4 CAN(11bit ID,250 Kbaud)

    9. ISO15765-4 CAN(29bit ID,250 Kbaud)

    A. SAE J1939 CAN(29bit ID,250*Kbaud)

    B. USER1 CAN(11*bit ID,125*Kbaud)

    C. USER2 CAN(11*bit ID,50*kbaud)

    *default settings(user adjustable)


    With proper software installed in the host device, you may have following parameters read out from your vehicle:

    • Vehicle Speed
    • RPM
    • Fuel Consumption
    • Engine Coolant Temp
    • Fuel Pressure
    • Calculated Engine Load
    • Throttle Position
    • Intake Manifold Pressure
    • Air Intake Temp
    • Timing Advance
    • Mass Air Flow
    • Fuel Level
    • Barometric Pressure
    • EVAP System Vapor Pressure
    • Fuel Trim

    Packing list

    1 * KW912

    1 * User's manual

    1 * CD


    More pictures of Multi-function 16 pin plug car diagnostic scanner tool bluetooth obd2 KW912 work on android devices free

    KONNWEI cheaper price model KW912 ELM327 wireless bluetooth 12V car OBD2 EOBD

    KONNWEI cheaper price model KW912 ELM327 wireless bluetooth 12V car OBD2 EOBD

    KONNWEI cheaper price model KW912 ELM327 wireless bluetooth 12V car OBD2 EOBD

    KONNWEI cheaper price model KW912 ELM327 wireless bluetooth 12V car OBD2 EOBD
