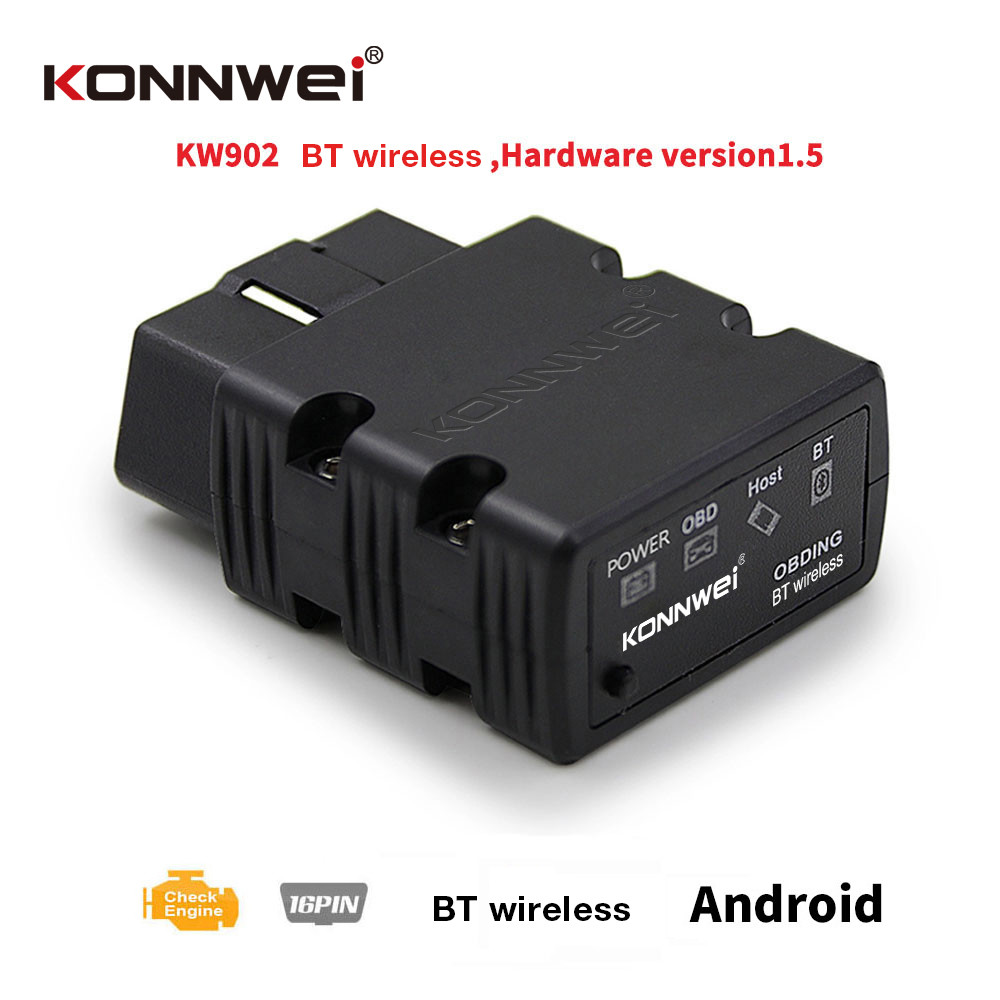

Stable ELM327 car diagnostic scanner bluetooth KW902 read real-time
data read fault codes on ECU
| Item No. | KW902 bluetooth |
| Brand | KONNWEI |
| Color | Red Orange Green Black White |
| Language | English is default language,pls select the language what you need
in the phone setting interface |
| OEM | Yes |
| Feature | Clear fault codes |
Features of Stable ELM327 car diagnostic scanner bluetooth KW902 read real-time
data read fault codes on ECU :
*Supply voltage(VDD):12V
*Work temperature range: -20 ~ +70C
*Storage temperature range:-40 ~ +125C
*RF sensitivity(Basic Rate): -85db
*Modulation Mode:GFSK
* Frequency Range:2402 ~ 2480MHZ
* Transmission Range:10M
* Bluetooth Profile:SPP
* UART Params:38400,8,n,1
* Small size, compact structure. Plug and never unplug
* Stable wireless connection
* No wires or batteries (adapter is powered by the diagnosis size
sockets)
* Stop communication, wait half an hour, auto sleep
* Supports all OBDII protocols
* The adapter uses the fastest and most reliable ARM chips

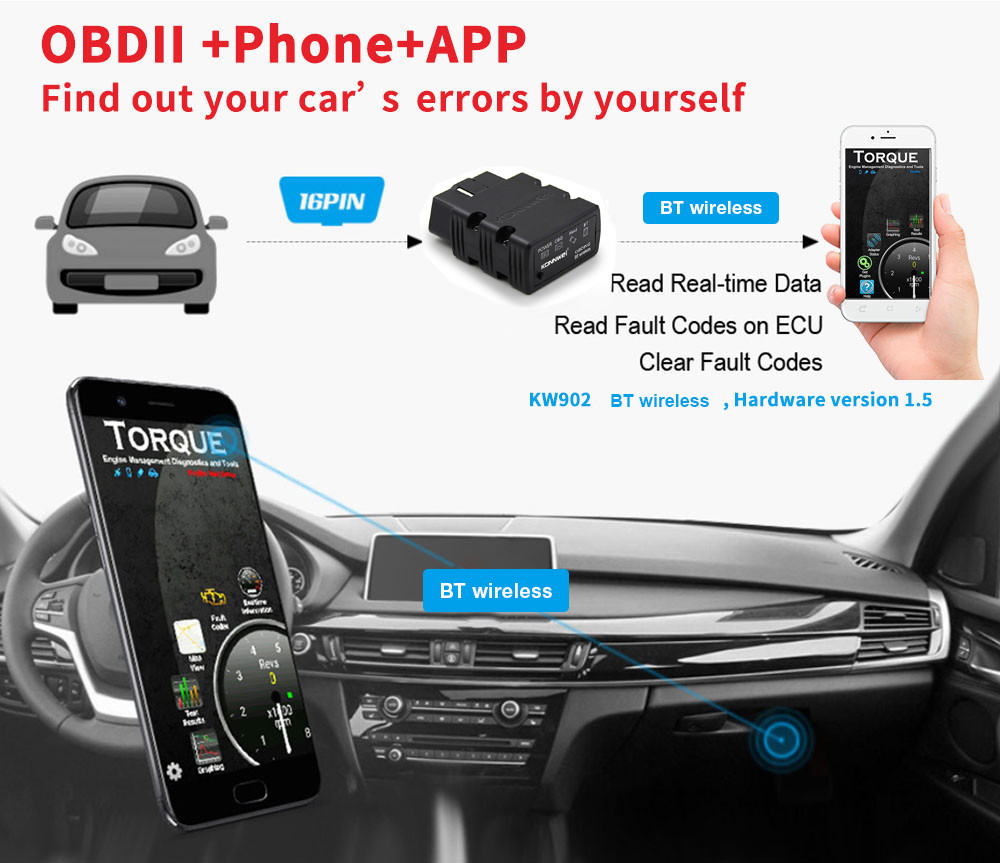

The device is a small adapter that plugged into the vehicle
OBD-connector.
On Bluetooth, it connects to any computer, tablet or smartphone,
With associated diagnostic procedures . Doing these simple
operations, you will be able:
* Measure the fuel consumption.
* Display real-time operating performance of the car, such as
momentum,
vehicle speed, oil pressure, coolant temperature, engine load,
intake manifold
pressure, throttle position, the values of oxygen sensors, air
intake
temperature, and more.
* Turn off the MIL (signal Check Engine).
* Download data to external media in a variety of formats for later
printing.
* Record various parameters, display graphics in real time, and
more.
With kw902 you will be able to perform a complete computer
diagnostics car
and even to correct minor faults without resorting to service
stations. KW902 scantool is a high-quality automotive scanning
tool, supports all OBD-II
Protocols of Stable ELM327 car diagnostic scanner bluetooth KW902 read
real-time data read fault codes on ECU
0. Automatic
1. SAE J1850 PWM(41.6Kbaud)
2. SAE J1850 VPW(10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP(fast init,10.4 Kbaud)
6. ISO15765-4 CAN(11bit ID,500 Kbaud)
7. ISO15765-4 CAN(29bit ID,500 Kbaud)
8. ISO15765-4 CAN(11bit ID,250 Kbaud)
9. ISO15765-4 CAN(29bit ID,250 Kbaud)
A. SAE J1939 CAN(29bit ID,250*Kbaud)
B. USER1 CAN(11*bit ID,125*Kbaud)
C .USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
More picture of Stable ELM327 car diagnostic scanner bluetooth KW902 read real-time
data read fault codes on ECU
