ELM327 obd2 Mini Bluetooth Auto OBD II Car Diagnostic Scan Tools
for Android Red
KW903 Bluetooth Car Diagnostic Scanner parameters
| Product name | Android Car Diagnostic Scan Tools |
| Warranty | 2 years |
| Housing material | ABS |
| Hardware version | V1.5 |
| Company Type | Manufacturer |
| Package size | 12*7.5*4cm |
| Unit G.W. | 0.084kg |
| Languages | English defaulted and can select the language you need |
| Feature | With ON/OFF switch |
| Support protocols | CAN, J1850 VPW, J1850 PWM, ISO 9141, KWP2000, SAE J1850 |
Description:
The device is a small adapter that plugged into the vehicle OBDII
connector via bluetooth, it is suitable for android smart phone or
Windows PC. With associated diagnostic procedures, Free obd
software provided in the package. With this product, you will be
able to perform a complete computer diagnostic car and even to
correct minor faults without resorting to service stations. It can display real time performance of your car, such as momentum,
vehicle speed, intake manifold pressure, coolant temperature, oil pressure, engine load, throttle position and air intake
temperature. If the communication is terminated, this item will
automatically switch to sleep mode in half an hour.
Main features
*Supply voltage(VDC):12V
*Work temperature range: -20 ~ +70℃
*Storage temperature range:-40 ~ +125℃
*RF sensitivity(Basic Rate): -85db
*Modulation Mode:GFSK
* UART Params:38400,8,n,1
* Small size, compact structure. Plug and never unplug
* Frequency Range:2402 ~ 2480MHZ
* Transmission Range:10M
* Bluetooth Profile:SPP
* Stable wireless connection
* No wires or batteries (adapter is powered by the diagnosis size
sockets)
* Stop communication, wait half an hour, auto sleep
* The adapter adopts fast and reliable chips which promise its stable
wireless connection.
* It supports all OBDII protocols: J1850 VPW, J1850 PWM, IS09141-2,
KWP2000 and CAN
Protocols:
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
Default settings(user adjustable)
With proper software installed in the host device, you may have
following parameters read out from your vehicle:
Vehicle Speed
RPM
Fuel Consumption
Air Intake Temp
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim
Throttle Position
Intake Manifold Pressure
Packing list
1 * KW903 Android Car Diagnostic Scan Tools
1 * User's manual
1 * CD
FAQ:
Q1: Can I make a sample order for KONNWEI Car Diagnostic Scanner?
A1: Yes, sample order is welcome for quality test. Mixed samples
are also acceptable.
Q2: What is the lead time?
A2: Samples have stocks ready for shipment, bulk order needs 5-7
days.
Q3: What's your MOQ for order?
A3: The MOQ for KONNWEI brand is only 1pc and if need customize
your own brand, it's 500~1000pcs depends on models.
Q4: How do you ship the goods and how long does it take to arrive?
A4: Usually shipping by express like DHL, UPS, FedEX, taking about
4-6 days or by boat about 25-30 days according to the Country you
are in.

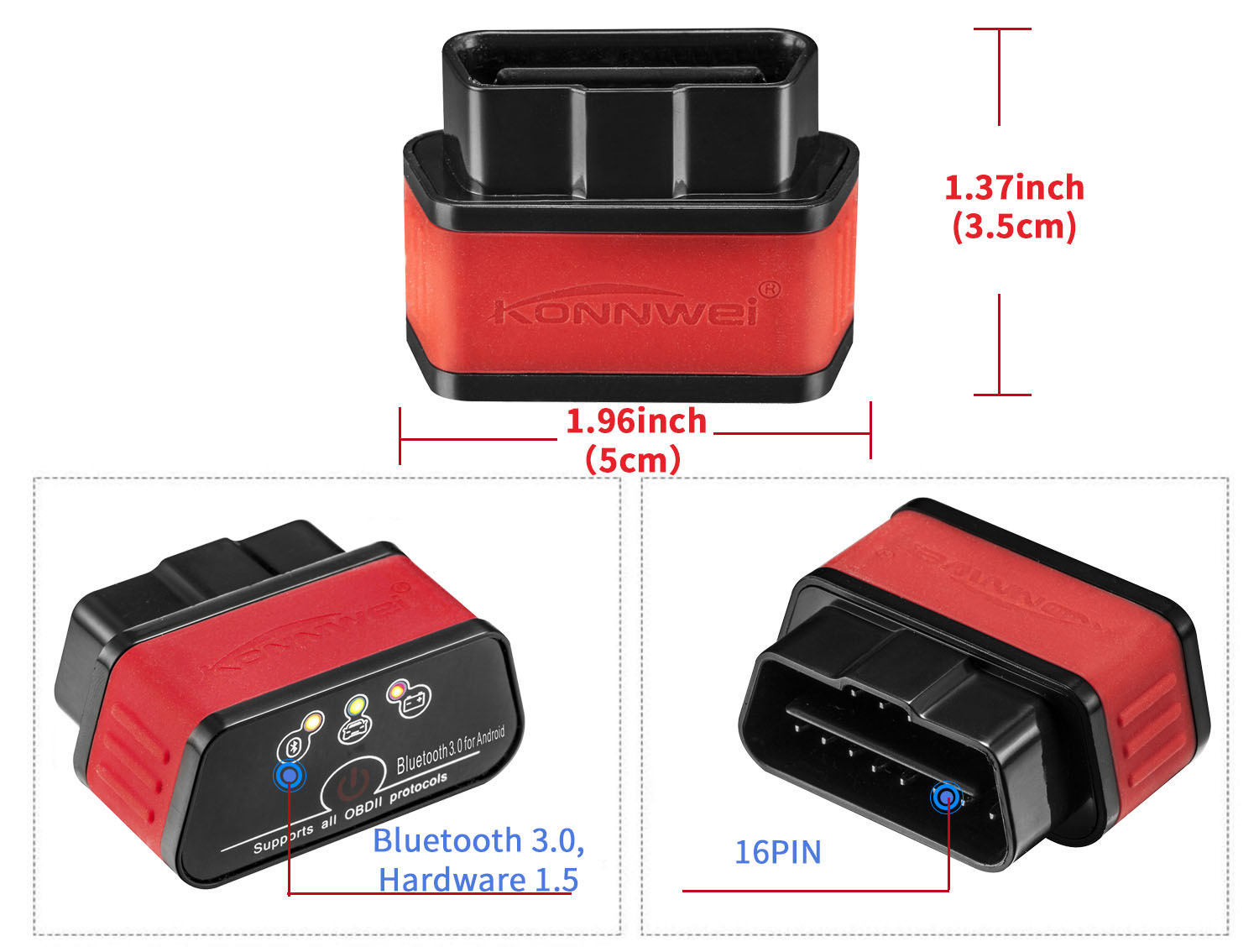

Here are more pictures for you to learn our KW903 Android Car Diagnostic Scan Tools
