Bluetooth obd2 Car Diagnostic Scanner with Torque Check Engine
Light for Android
KW910 Bluetooth obd2 Android parameters
| Product name | Bluetooth obd2 Android |
| Software | Torque |
| Power | OBD2 adapter connection |
| Housing color | Black |
| Warranty | 24 months |
| Feature1 | Read live O2 sensor data |
| Feature2 | Display graphs data |
| Languages | English defaulted, and other languages are optional |
| Support protocols | SAE J1850, CAN, J1850 VPW, J1850 PWM, ISO 9141, KWP2000 |
Description

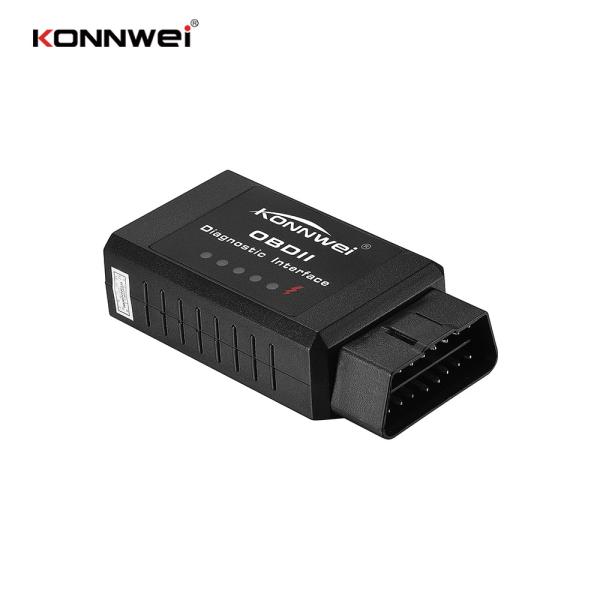

The device is a small adapter that plugged into the vehicle OBDII
connector via bluetooth, it is suitable for android smart phone or
Windows PC. With associated diagnostic procedures, Free obd
software provided in the package ). With this product, you will be
able to perform a complete computer diagnostic car and even to
correct minor faults without resorting to service stations.
Main features
- Display real time performance of your car, such as momentum,
vehicle speed, oil pressure, coolant temperature, engine load,
intake manifold pressure, throttle position and air intake
temperature.
- If the communication is terminated, this item will automatically
switch to sleep mode in half a hour.
- The adapter adopts fast and reliable chips which promise its
stable wireless connection.
- It supports all OBDII protocols: J1850 VPW, J1850 PWM, IS09141 -
2, KWP2000 and CAN
- Small size and compact structure, plug and play.
Protocols
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*Default settings(user adjustable)
With proper software installed in the host device, you may have
following parameters read out from your vehicle:
- Vehicle Speed
- RPM
- Fuel Consumption
- Engine Coolant Temp
- Fuel Pressure
- Calculated Engine Load
- Throttle Position
- Intake Manifold Pressure
- Air Intake Temp
- Timing Advance
- Mass Air Flow
- Fuel Level
- Barometric Pressure
- EVAP System Vapor Pressure
- Fuel Trim
Packing list
1 * KW910 Bluetooth obd2 Android
1 * User's manual
1 * CD
FAQ:
Q1: Can I make a sample order for KONNWEI Bluetooth obd2 Android?
A1: Yes, sample order is welcome for quality test. Mixed samples
are also acceptable.
Q2: What is the lead time?
A2: Samples have stocks ready for shipment, bulk order needs 5-7
days.
Q3: What's your MOQ for order?
A3: The MOQ for KONNWEI brand is only 1pc and if need customize
your own brand, it's 500~1000pcs depends on models.
Q4: How do you ship the goods and how long does it take to arrive?
A4: Usually shipping by express like DHL, UPS, FedEX, taking about
4-6 days or by boat about 25-30 days according to the Country you
are in.
Q5: Is it ok to print my logo on KONNWEI product?
A5: Usually we sell products in KONNWEI brand and we have
authorized more than 100 agents in global to sell KONNWEI brand on
Amazon, Ebay, Aliexpress etc. Also OEM your own logo is also
welcome, we are also very willing to support customers with their
own brand since we are manufacturer. Please formally inform us your
requirements and we will make a sample for confirmation and then
make bulk production
Q6: How to proceed an order for KONNWEI Bluetooth obd2 Android?
A6: At first, let us know your requirements. In the following, we
will recommend the suitable model and quote according to your
requirements. Then let's confirm the samples for test or you can
make bulk order directly. After confirm the model, QTY and price,
we will make PI for you to arrange payment. T/T, Western Union,
Paypal, Visa etc are all acceptable. 1000pcs goods can be shipped
within 3 days and 10000pcs goods within 7 days after receive your
payment.
Here are more pictures for you to learn our KW910 Bluetooth obd2 Android
