100% Original factory private design li ion battery tester kw600
with large TFT color screen
| Item No. | KW600 |
| Brand | KONNWEI |
| Language | (1) Chinese (2) English (3) Spanish (4) German (5) Russian (6)
Dutch (7) Japanese (8) Italian (9) Portuguese (10) Arabic (11)
French |
| Application | It can test all kinds of 12V battery |
| Color | Black ,just one color in stock |
| System support | XP WIN7 WIN8 WIN10 |
| IC chip | SMT32F103C8T6 Chip solution from USA |
| Feature | It support free upgrade system and print data on PC |
100% Original factory private design li ion battery tester kw600
with large TFT color screen key functions & features:
1. System voltage: 12 Volts
2. Test Result: Good, Recharge or Replace
3. Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information
relative to battery rating.
4. Internal resistance value (mΩ)
5. Life in percentage (%)
6. Cranking system
7. Charging system
8. Voltage test in waveform
9. Record and re-play battery data, Life-time free update service
10. Battery test, cranking test, charging test and other additional
functions.
Specifications and Support Languages of 100% Original factory private design li ion battery tester kw600
with large TFT color screen1. Measure Standard
2. CCA:100-2000
3. BCI:100-2000
4. CA:100-2000
5. MCA:100-2000
6. JIS:26A17-24SH52
7. DIN:100-1400
8. IEC:100-1400
9. EN:100-2000
10 SAE:100-2000
11. GB:100-1400
12 Display: Color TFT LCD Screen
13. System Voltage:12 Volts
14. Input Voltage Range:8V-16V
15. Power Requirements: No internal batteries required.
16. Power on when hooked up during testing.
17. Operating Temperature:0℃-50℃
18. Storage Temperature:-20℃-70℃
19. Weight:0.4Kg
Support language: English, French, Spanish German, Japanese,
Russian, Italian, Portuguese, Polish, Dutch
Application of 100% Original factory private design li ion battery tester kw600
with large TFT color screen
Use a test a wide range of 12v batteries(Starting{SLI},Deep Cycled
and Marine) of Wet(Flooded),VRLA or Maintenance Free (MF),Sealed
Maintenance Free (SMF), Absorption Glass Mat(AGM),EFB and GEL Cell.
The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and
IEC are supported.
Package includes:
1*KONNWEI KW600 Auto Diagnostic Scanner
1*Mini USB cable
1*User’s Manual

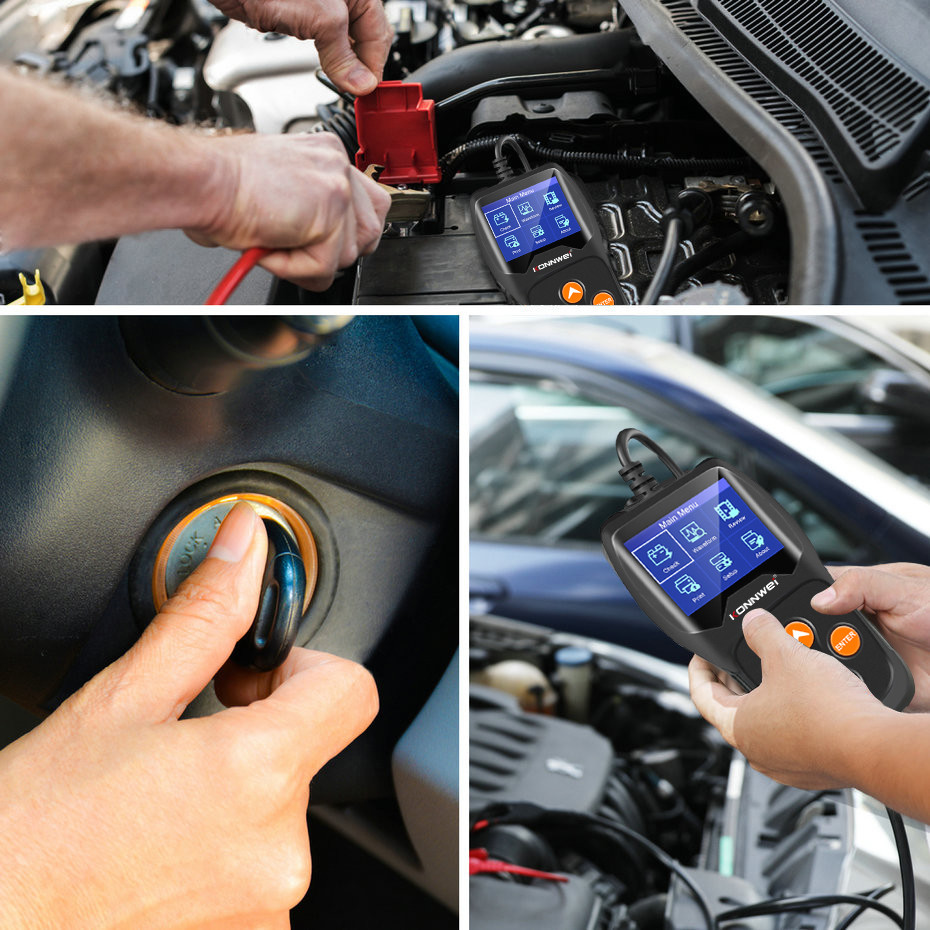

More pictures of 100% Original factory private design li ion battery tester kw600
with large TFT color screen
