Quick test car engine tester wifi obdii diagnostic car scanner
KW903 WIFI can check gasoline and diesel cars
| Item mould | KW903 Wifi |
| Brand | Konnwei |
| Application | Check the engine of all OBD2 12V vehicles after 1996 |
| System | Android and IOS |
| Feature | Android is free torque,IOS is unfree dashcommand |
| IC Chip | 25K80 Chip |
| Language | English is default language,you could select the language what you
need on phone setting interface |
| Material | ABS |
| Warranty | 24 months worry free |
| Color in stock | 6 different colors for you to choose |
| OEM | yes |

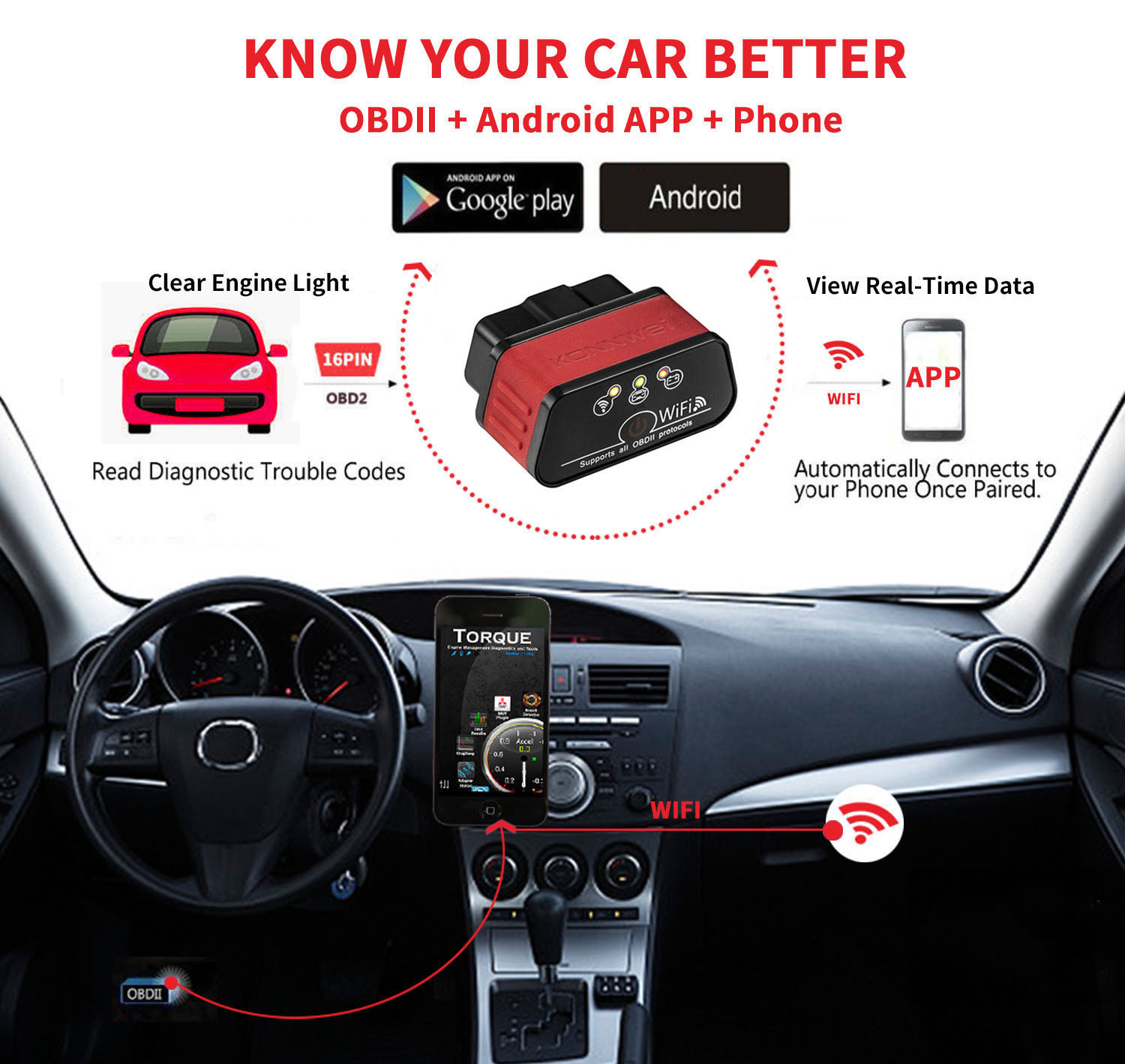

Functions of Quick test car engine tester wifi obdii diagnostic car scanner
KW903 WIFI can check gasoline and diesel cars:
1.Read diagnostic trouble codes, both generic and
manufacturer-specific, and display their 2.meaning (over 3000
generic code definitions in the database).
3.Clear trouble codes and turn off the MIL ("Check Engine" light)
4.Display current sensor data, including:
5.Engine RPM
6.Calculated Load Value
7.Coolant Temperature
8.Fuel System Status
9.Vehicle Speed
10.Short Term Fuel Trim
Specifications of Quick test car engine tester wifi obdii diagnostic car scanner
KW903 WIFI can check gasoline and diesel cars:
SSID: CLKDevices
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 x 1.25 x 1.2 inches
Support Protocol:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
Package includes:
1x KW902 WIFI Scanner
1x Software CD
1x English User Manual
More pictures of Quick test car engine tester wifi obdii diagnostic
car scanner KW903 WIFI can check gasoline and diesel cars:
