Konnwei KW903 Android ELM 327 Bluetooth Car Scanner Obd2 Diagnostic Tool

    Buy cheap Konnwei KW903 Android ELM 327 Bluetooth Car Scanner Obd2 Diagnostic Tool from wholesalers

    Buy cheap Konnwei KW903 Android ELM 327 Bluetooth Car Scanner Obd2 Diagnostic Tool from wholesalers
    • Buy cheap Konnwei KW903 Android ELM 327 Bluetooth Car Scanner Obd2 Diagnostic Tool from wholesalers
    • Buy cheap Konnwei KW903 Android ELM 327 Bluetooth Car Scanner Obd2 Diagnostic Tool from wholesalers
    • Buy cheap Konnwei KW903 Android ELM 327 Bluetooth Car Scanner Obd2 Diagnostic Tool from wholesalers
    • Buy cheap Konnwei KW903 Android ELM 327 Bluetooth Car Scanner Obd2 Diagnostic Tool from wholesalers
    • Buy cheap Konnwei KW903 Android ELM 327 Bluetooth Car Scanner Obd2 Diagnostic Tool from wholesalers

    Konnwei KW903 Android ELM 327 Bluetooth Car Scanner Obd2 Diagnostic Tool

    Ask Lasest Price
    Brand Name : KONNWEI
    Model Number : KW903 Bluetooth obd
    Certification : CE FCC ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal., MoneyGram
    Supply Ability : 35000 pieces per month
    Delivery Time : 1000pieces within 10days
    • Product Details
    • Company Profile

    Konnwei KW903 Android ELM 327 Bluetooth Car Scanner Obd2 Diagnostic Tool

    KW903 obd2 Konnwei ELM327 Bluetooth Car Diagnostic Tools Car Scanner
    Konnwei OBD2 scanner and battery tester catalog El...

    ModelKW903
    FunctionCar engine tester
    LCD Screen
    Size(Inch)
    n/a
    ApplicationCan detect 12V gasoline and diesel cars
    IC Chip25K80 Chip
    Color6 Color:
    Black White/ White Red/Black / Black Orange/Black Red/ Red
    LanguagesEnglish is default language, please select the language you need on phone settings interface
    Support systemsboth android and apple are available. Android is free turque but ios is unfree dashcommand;
    Don't support upgrade system and print
    Battery
    function
    don't support battery test function
    Support protocols
    ISO 9141
    KWP2000
    SAE J1850
    CAN
    J1850 VPW
    J1850 PWM

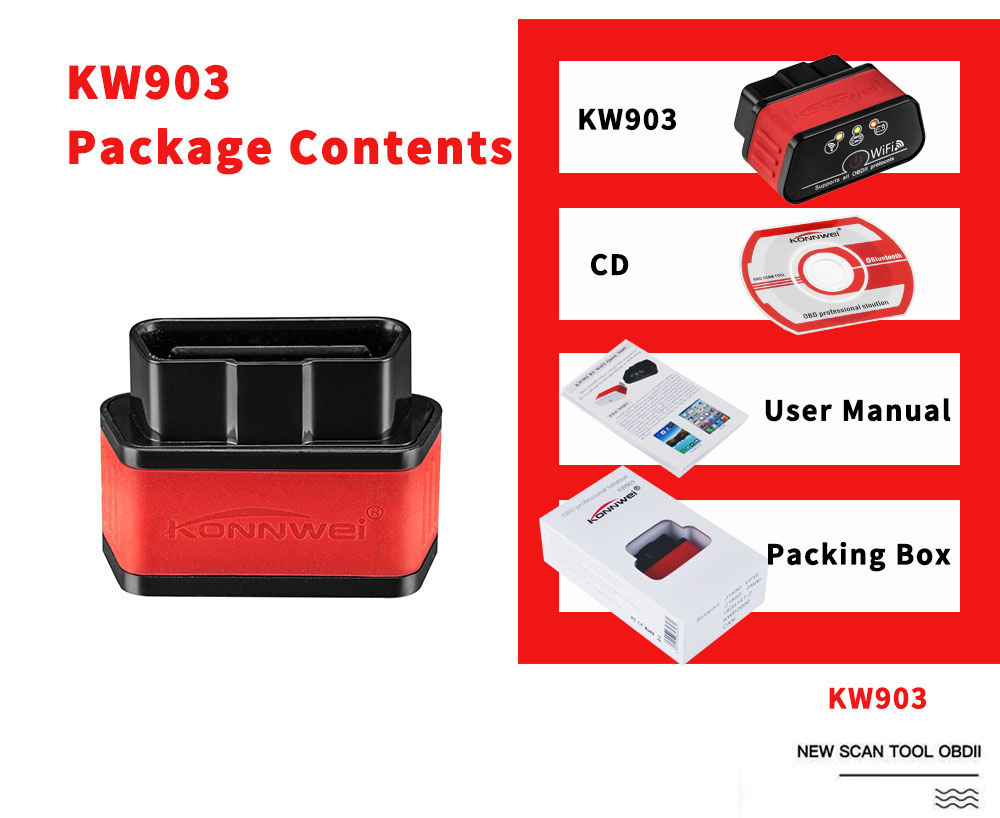

    Packing list1x KW903 Bluetooth Scann1x Software CD1x English User Manual
    Package InfoItem Size:
    Package Size :12*7.5*4cm
    Net Weight :0.03kg
    Gross Weight:0.084kg
    Qty/Ctn: 100pcs/ Ctn
    Carton Size: 39*25.5*36cm
    Carton Weight: 8.9KG/carton
    Main features
    KW903 able to detect and interpret these protocols automatically.It also provides support for high speed communications and a low power sleep mode.It use AT commands to communicate with a host device (PC, notebook, , iPod touch, iPad and so on).There are plenty of software packages available, which are fully compatible with KW903.Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc.You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and vwell explained.KW903 measuring only 2.7 x 1.25x 0.9 inches, and it comes attached with a 6 ft OBDII cable for easy installation.It also comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles.Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode.

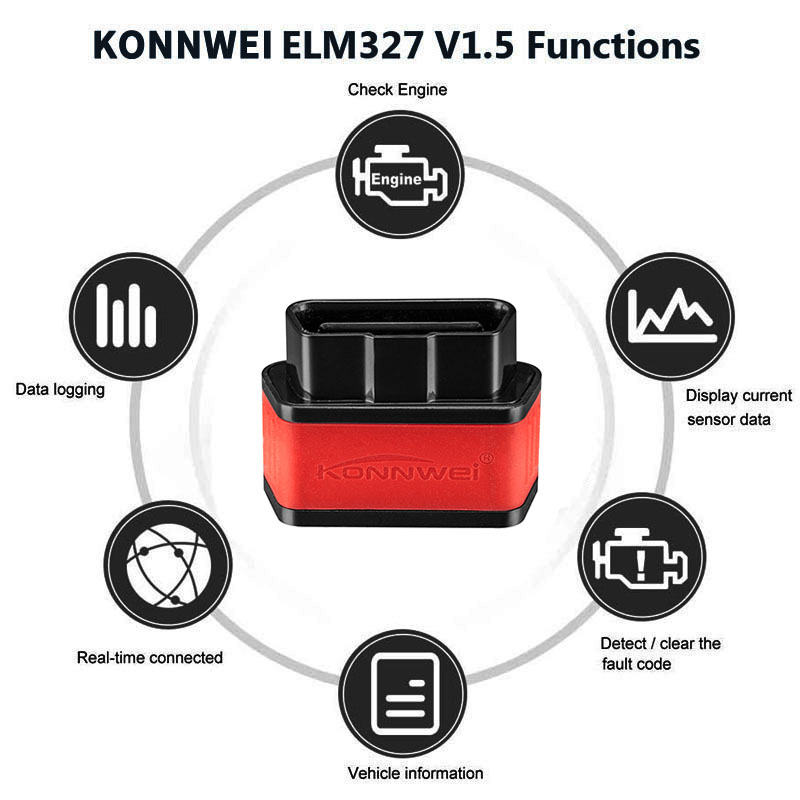

    The program lets you perform the following operations


    1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
    2. Clear trouble codes and turn off the MIL ("Check Engine" light)
    3. Display current sensor data, including:
    4. Engine RPM
    5. Calculated Load Value
    6. Coolant Temperature
    7. Fuel System Status
    8. Vehicle Speed
    9. Short Term Fuel Trim
    10. Long Term Fuel Trim
    11. Intake Manifold Pressure
    12. Timing Advance
    13. Intake Air Temperature
    14. Air Flow Rate
    15. Absolute Throttle Position

    The device is a small adapter that plugged into the vehicle OBDII connector via bluetooth, it is suitable for android smart phone or Windows PC. With associated diagnostic procedures, Free obd software provided in the package ). With this product, you will be able to perform a complete computer diagnostic car and even to correct minor faults without resorting to service stations.


    Main Features
    - Display real time performance of your car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position and air intake temperature.
    - If the communication is terminated, this item will automatically switch to sleep mode in half a hour.
    - The adapter adopts fast and reliable chips which promise its stable wireless connection.
    - It supports all OBDII protocols: J1850 VPW, J1850 PWM, IS09141 - 2, KWP2000 and CAN
    - Small size and compact structure, plug and play.

    Protocols :
    0. Automatic T 1.SAE J1850 PWM(41.6Kbaud)
    2. SAE J1850 VPW(10.4Kbaud)
    3. ISO9141-2(5 baud init,10.4Kbaud)
    4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)
    5. ISO14230-4 KWP(fast init,10.4 Kbaud)
    6. ISO15765-4 CAN(11bit ID,500 Kbaud)
    7. ISO15765-4 CAN(29bit ID,500 Kbaud)
    8. ISO15765-4 CAN(11bit ID,250 Kbaud)
    9. ISO15765-4 CAN(29bit ID,250 Kbaud)
    A. SAE J1939 CAN(29bit ID,250*Kbaud)
    B. USER1 CAN(11*bit ID,125*Kbaud)
    C. USER2 CAN(11*bit ID,50*kbaud)
    Default settings(user adjustable)
