KONNWE factory private pattern Iphone Automotive Scan Tool kw901
wifi suitable for android and IOS system hot sale in Europe market
| Item No. | KW901 wifi |
| Brand | KONNWEI |
| System | Android , IOS ,Ipad |

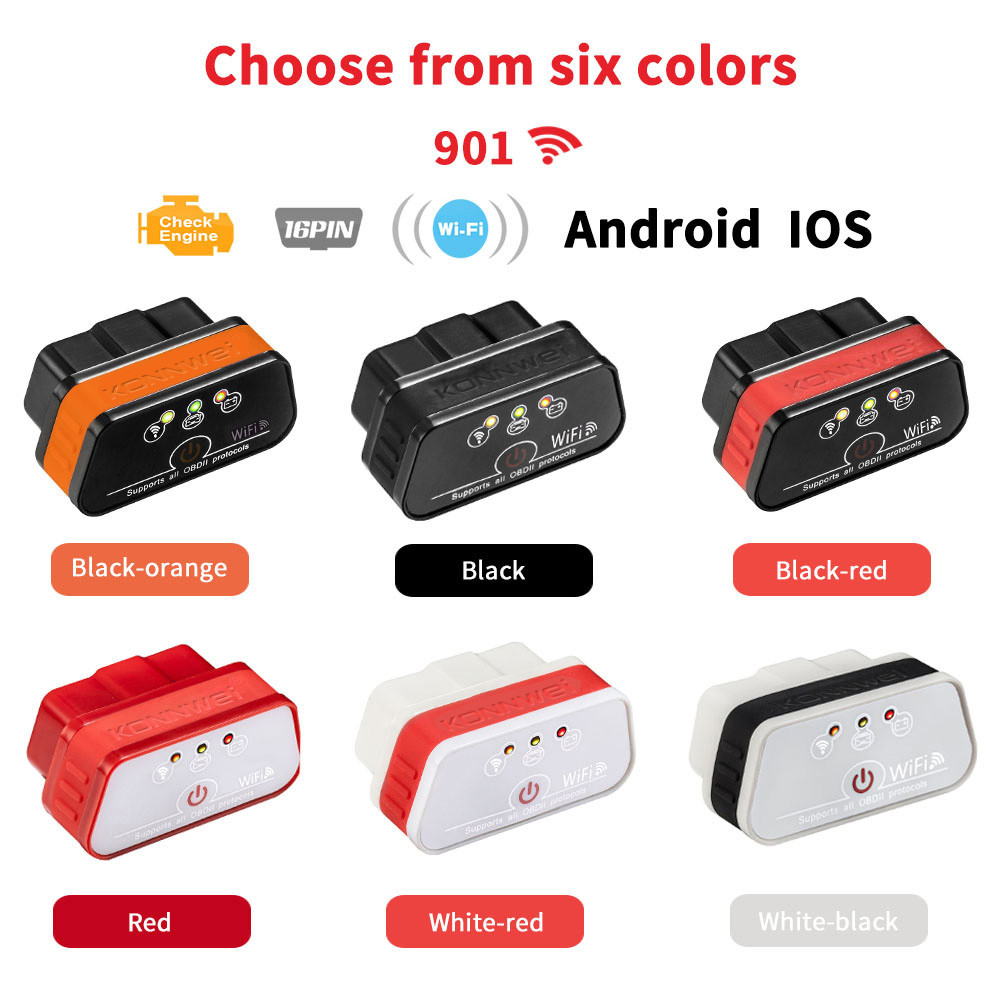

| Color | (1)white black (2) white red (3) black (4) black red (5) red (6)
black organge |
| Feature | Android is free Torque , but IOS is unfree dashcommand |
| Language | English is default language,pls select the language what you need
in the phone setting interface |
Features of KONNWE private pattern Iphone Automotive Scan Tool kw901 wifi
suitable for android and IOS system :
- KW901 able to detect and interpret these protocols automatically.
- It also provides support for high speed communications and a low
power sleep mode.
- It use AT commands to communicate with a host device (For PC, For
notebook, For iPhone,For iPod touch, For iPad and so on).
- There are plenty of software packages available, which are fully
compatible with KW901.
Some of them have pretty useful features, such as engine running
parameters monitoring, DTC reading and clearing, MPG meter, etc.
- You can even write your own software on a specified hardware
platform if you wish, because the AT commands are fully documented
and very well explained.
KW903 measuring only 2.7 x 1.25x 0.9 inches, and it comes attached
with a 6 ft OBDII cable for easy installation.
- It also comes included with a power switch built-in to prevent the
need for having to constantly disconnect your unit from the OBDII
port.
- It is compatible with 1996 and later vehicles.
- Connecting to your iPhone / iPod touch is made by WIFI connection
in adHoc mode.
With proper software installed in the host device, you may have
following parameters read out from your vehicle:
- Vehicle Speed
- RPM
- Fuel Consumption*
- Engine Coolant Temp
- Fuel Pressure
- Calculated Engine Load
- Throttle Position
- Intake Manifold Pressure
- Air Intake Temp
- Timing Advance
- Mass Air Flow
- Fuel Level
- Barometric Pressure
- EVAP System Vapor Pressure
- Fuel Trim
Specifications KONNWE private pattern Iphone Automotive Scan Tool
kw901 wifi suitable for android and IOS system
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Dimensions: 2.75 x 1.25 x 1.2 inches
Connection Type: Wifi
KONNWE private pattern Iphone Automotive Scan Tool kw901 wifi
suitable for android and IOS system Languages & Support Protocol:
Can use phone to select the language you need
Support Protocol: I9141, KWP2000, SAE J1850, CAN,J1850 VPW,J1850
PWM
Package includes:
1x KW903 WIFI Scanner
1x Software CD
1x English User Manual
More picture of KONNWE private pattern Iphone Automotive Scan Tool kw901 wifi
suitable for android and IOS system
