Automotive OBD2 Scan Tool Vehicle Hotspot WIFI Car Diagnostic Tools
for Iphone
KW903 Iphone automotive scan tool parameters
| Product name | Iphone automotive scan tool |
| Housing material | ABS |
| Hardware version | V1.5 |
| Company Type | Manufacturer |
| Operating Temperature | -15 to 100℃ |
| Wifi Standard | 802.11a/b/g |
| Power | Adapter is powered by the 16 pin OBD2 sockets |
| Languages | English defaulted and can select the language you need |
| Feature | Read live PCM datastream |
| Support protocols | ISO 9141, KWP2000, SAE J1850, CAN, J1850 VPW, J1850 PWM |
Features:
KW901 able to detect and interpret these protocols automatically.
It also provides support for high speed communications and a low
power sleep mode.
It use AT command to communicate with a host device (For PC, For
notebook, For iPhone, For iPod touch, For iPad and so on).
There are plenty of software packages available, which are fully
compatible with KW901.
Some of them have pretty useful features, such as engine running
parameters monitoring, DTC reading and clearing, MPG meter, etc.
You can even write your own software on a specified hardware
platform if you wish, because the AT command are fully documented
and very well explained.
KW901 measuring only 2.7 x 1.25x 0.9 inches, and it comes attached
with a 6 ft OBDII cable for easy installation.
It also comes included with a power switch built-in to prevent the
need for having to constantly disconnect your unit from the OBDII
port.
It is compatible with 1996 and later vehicles.
Connecting to your iPhone / iPod touch is made by WIFI connection
in adHoc mode.
With proper software installed in the host device, you may have
following parameters read out from your vehicle:
- Vehicle Speed
- RPM
- Fuel Consumption
- Engine Coolant Temp
- Fuel Pressure
- Calculated Engine Load
- Throttle Position
- Intake Manifold Pressure
- Air Intake Temp
- Timing Advance
- Mass Air Flow
- Fuel Level
- Barometric Pressure
- EVAP System Vapor Pressure
- Fuel Trim
Specifications:
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Dimensions: 2.75 x 1.25 x 1.2 inches
Connection Type: Wifi
Languages & Support Protocol:
Can use phone to select the language you need
Support Protocol: I9141, KWP2000, SAE J1850, CAN, J1850 VPW, J1850
PWM
Package includes:
1x KW901 WIFI diagnostic scanner
1x Software CD
1x English User Manual
FAQ:
Q1: Can I make a sample order for KONNWEI Iphone automotive scan
tool?
A1: Yes, sample order is welcome for quality test. Mixed samples
are also acceptable.
Q2: What is the lead time?
A2: Samples have stocks ready for shipment, bulk order needs 5-7
days.
Q3: What's your MOQ for order?
A3: The MOQ for KONNWEI brand is only 1pc and if need customize
your own brand, it's 500~1000pcs depends on models.
Q4: How do you ship the goods and how long does it take to arrive?
A4: Usually shipping by express like DHL, UPS, FedEX, taking about
4-6 days or by boat about 25-30 days according to the Country you
are in.

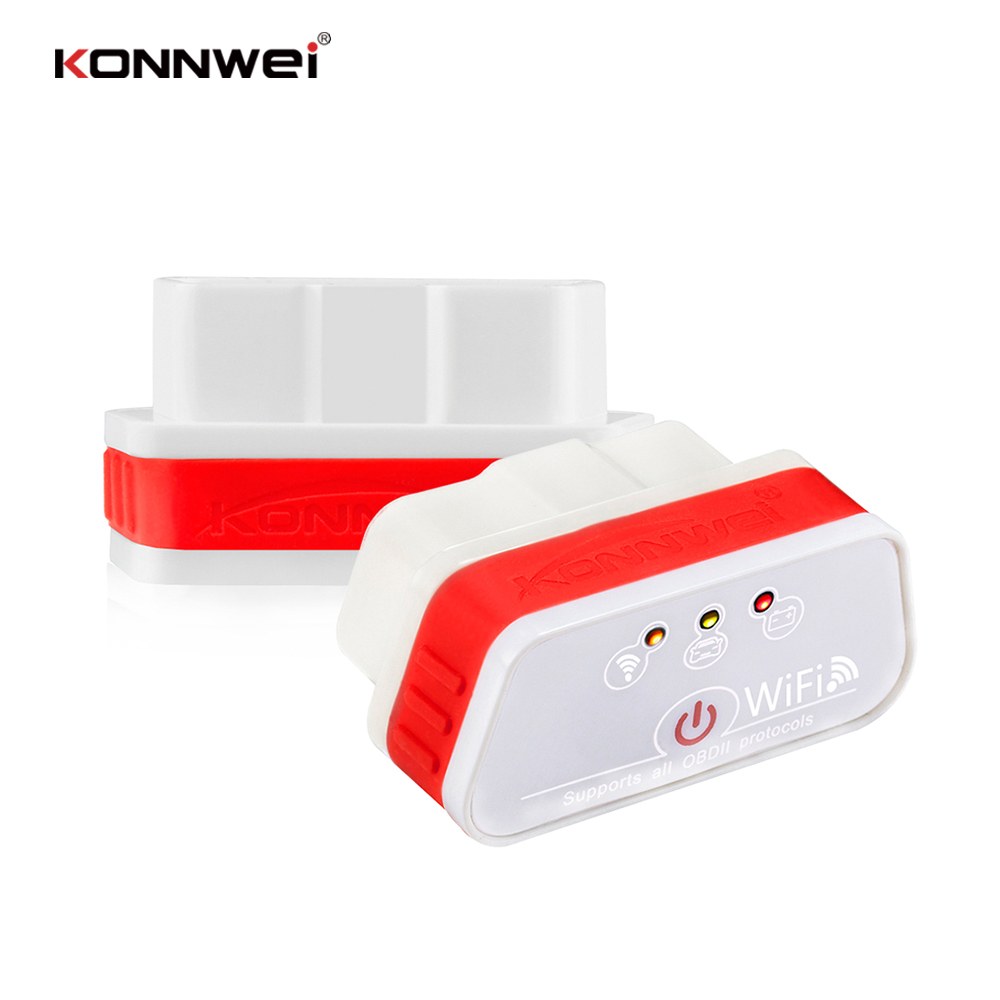

Here are more pictures for you to learn our KW901 Iphone automotive scan tool
