universal obd2 scanner / best automotive code reader diagnostic car
test KW820
| Brand | Konnwei |
| LCD Screen Size(Inch) | 2.8 Inchs Black& White back lit Screen |
| Application | Can detect 12V gasoline & diesel cars |
| IC chip | STM32F103C8T6 Chip solution |
| Color | Black+ Red as image |
| Function | OBD 2 Car engine tester |
| Support Protocol | ISO 9141, KWP2000, SAE J1850, CAN,J1850 VPW,J1850 PWM. |
| Connection | Standard 16PIN OBD diagnostic interface |
| Languages | 5 Languages English,French,German,Dutch,Spanish |
| Battery test function | don't support battery test function |
| System upgrade | upgrade system and print N/A |
| Support protocols |
ISO 9141 KWP2000 SAE J1850 CAN J1850 VPW J1850 PWM |
Other details
|
Color: black red, Material: ABS, Size: 18 * 8.5 * 3.5cm, Detection range: 0.3-2.5M, Type: LED reversing radar, Operating temperature: -60 -6 +0 (°C), |
| Packing details | Item Size: 18*8.7*3.2cm Package Size: 25*18*8cm Net Weight: 0.549kg Gross Weight: 0.667kg Qty/Ctn: 25pcs/Ctn Carton Size: 53.5*41* 35.5cm Carton Weight: 18KG/ carton |
Main Function:
1. Easily determines the cause of the Check Engine Light (MIL)
2. Retrieves generic (P0, P2, P3, and U0) and manufacturer specific
(P1, P3, and U1) codes
3. Turns off Check Engine Light (MIL), clears codes and resets
monitors
4. Displays DTC definitions on unit screen
5. Views freeze frame data
6. Displays monitor and I / M readiness status (emissions)
7. Identifies pending codes
8. Reads live PCM datastream
9. Displays live O2 sensor test data
10. Graphs data C (1996 and newer)
11. Reads, stores & playbacks live sensor data
12. Memory / battery backup for off-vehicle data review and
analysis
13. Performs modules present test
14. Retrieves vehicle information (VIN, CIN and CVN)
15. Supports CAN (Controller Area Network) and all other current
OBD-II protocols
16. Built-in OBD-II DTC lookup library
17. Large easy-to-read backlit LCD screen

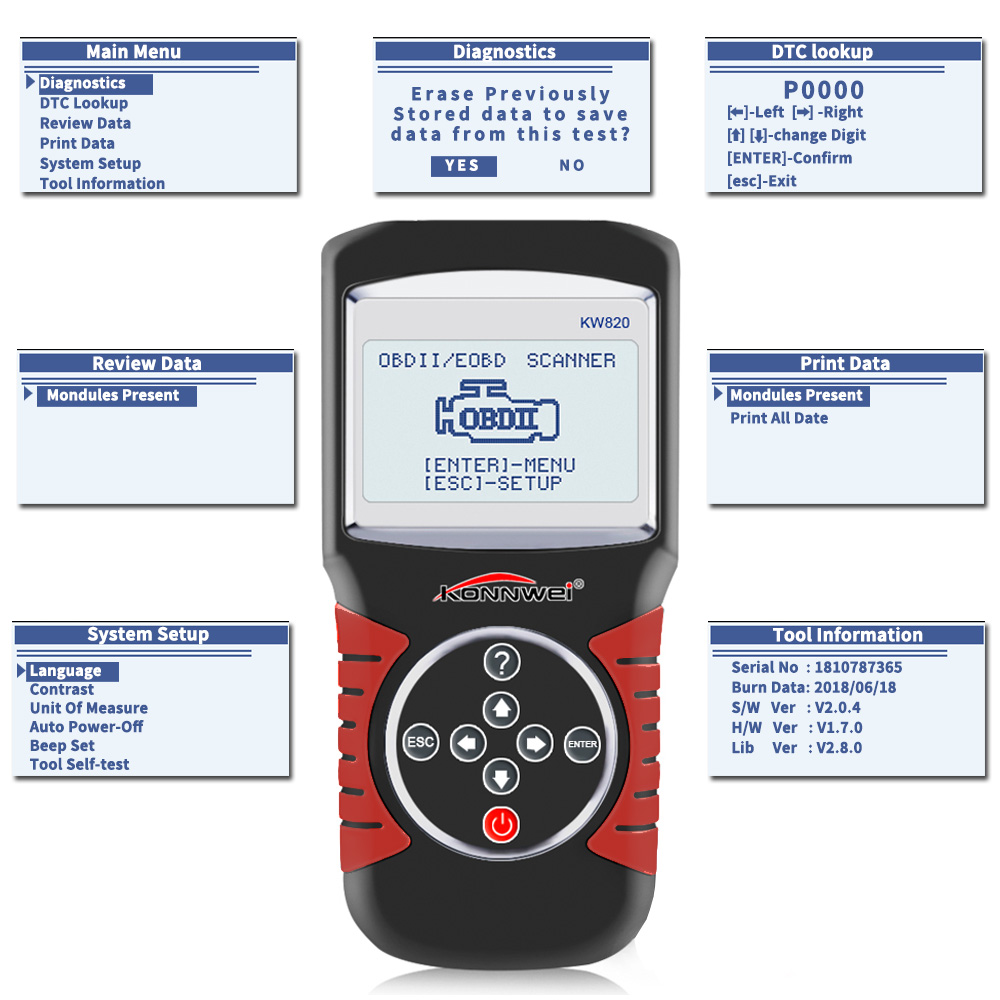

KONNWEI KW820
The KW820 OBDII/EOBD Code Reader supports all nine OBDII test modes on all OBDII EOBD compliant vehicles to enable technicians and
home users to accurately diagnose even the toughest problems.
Sophisticated yet easy-to-use, this hand-held scanning tool enables
fast and easy access to engine based EOBD Fault codes, The CAN
enabled tool gives clear, concise DTC definitions on its large
back-lit LCD screen retrieves generic P0, P2 and P3 and U0 codes
for engine emissions and also picks up manufacturer specific P1, P3
and U1 codes, Turns off MIL light, Stores freeze frame data for
later evaluation and will also display monitor and I/M readiness
status.
Product Features & Functions:
Works on all 1996 and later OBDII compliant US, European and Asian
vehicles
Easily determines the cause of the Check Engine Light ( MIL)
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific
(P1, P3, and U1) codes
Turns off Check Engine Light (MIL), clears codes and resets
monitors
Displays DTC definitions on unit screen
Views freeze frame data
Displays monitor and I/M readiness status (emissions)
Identifies pending codes
Reads live PCM datastream
Displays live O2 sensor test data
Graphs data C (1996 and newer)
Reads, stores & playbacks live sensor data
Memory/battery backup for off-vehicle data review and analysis
Multilingual menu:--- English, Spanish, French,German
Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area Network) and all other current
OBD-II protocols
Built-in OBD-II DTC lookup library
Large easy-to-read backlit LCD screen
Software upgradeable via internet
Prints data via PC
Works with the following:
OBDII/EOBD coverage(US, Asian & European) Reads & clears generic
and some maunfactures trouble codes.
Accessories Included:
User's Manual*1
OBD2 Cable*1
Color box*1
