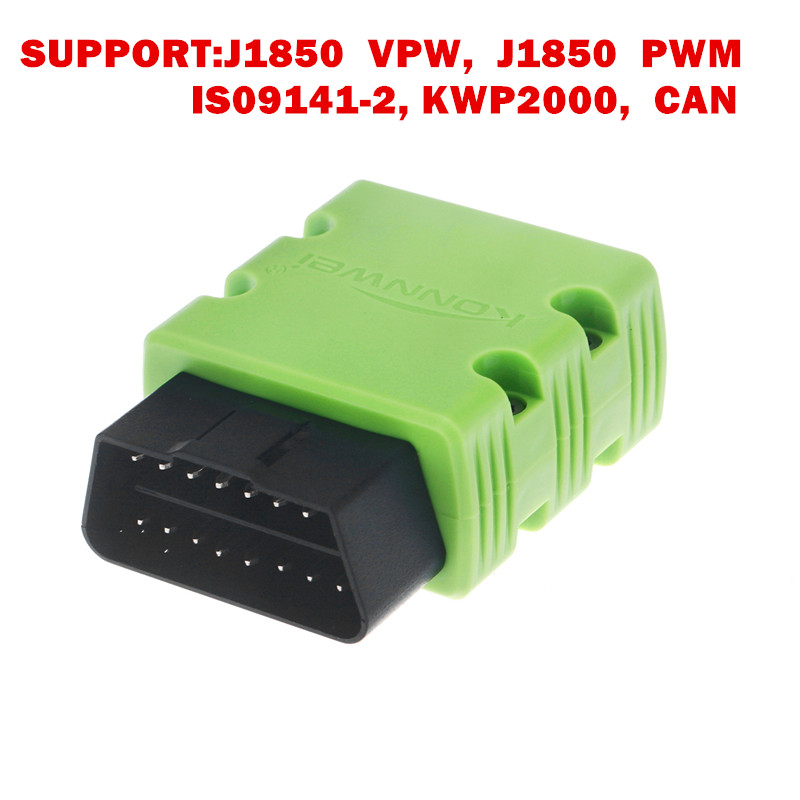

ELM327 V1.5 (Bluetooth) Function List:
1. Read diagnostic trouble codes, both generic and manufacturer specific
2. Clear trouble codes and turn off the for MIL (for "Check Engine" light)
3. Display current sensor data, including:
4. Engine for RPM
5. Calculated Load Value
6. Coolant Temperature
7.Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position

ELM327 V1.5 (Bluetooth) Features:

* Small size, compact structure. Plug and never unplug
* Stable wireless connection.
* No wires or batteries (adapter is powered by the 12V for Vehicles battery)
* 30 Minutes without communication, it will automatically go to sleep mode.
* Ultra low cumsumption in sleep-mode, less than 10MA
* Supports almost OBDII protocols, widest coverages
* The adapter uses the fast communication mode and most reliable for PIC18F25K80 chips, up to 60 PID/S.

Functions

• Measure the fuel consumption.
• Display real-time operating performance of the car, such as momentum,vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
• Turn off the MIL (signal Check Engine).
• Download data to external media in a variety of formats for later printing.
• Record various parameters, display graphics in real time, and more.

protocols

• SAE J1850 PWM(41.6Kbaud)
• SAE J1850 VPW(10.4Kbaud)
• ISO9141-2(5 baud init,10.4Kbaud)
• ISO14230-4 KWP(5 baud init,10.4 Kbaud)
• ISO14230-4 KWP(fast init,10.4 Kbaud)
• ISO15765-4 CAN(11bit ID,500 Kbaud)
• ISO15765-4 CAN(29bit ID,500 Kbaud)
• ISO15765-4 CAN(11bit ID,250 Kbaud)
• ISO15765-4 CAN(29bit ID,250 Kbaud) A.SAE J1939 CAN(29bit ID,250*Kbaud) B.USER1 CAN(11*bit ID,125*Kbaud) C.USER2 CAN(11*bit ID,50*kbaud)

Buyer Notice :

1. This device can't work for iPhone and for car DVD.
2. This device will not suitable for windows pc or not for laptops which don't support bluetooth.

Universal Bluetooth V1.5 ELM327 Support Language:
These software support a lot of languages, like Russian, Spanish, French, German, English, Italian, Portuguese...etc.
( you can download the app : For Torque, to see whether it include your country language.)
