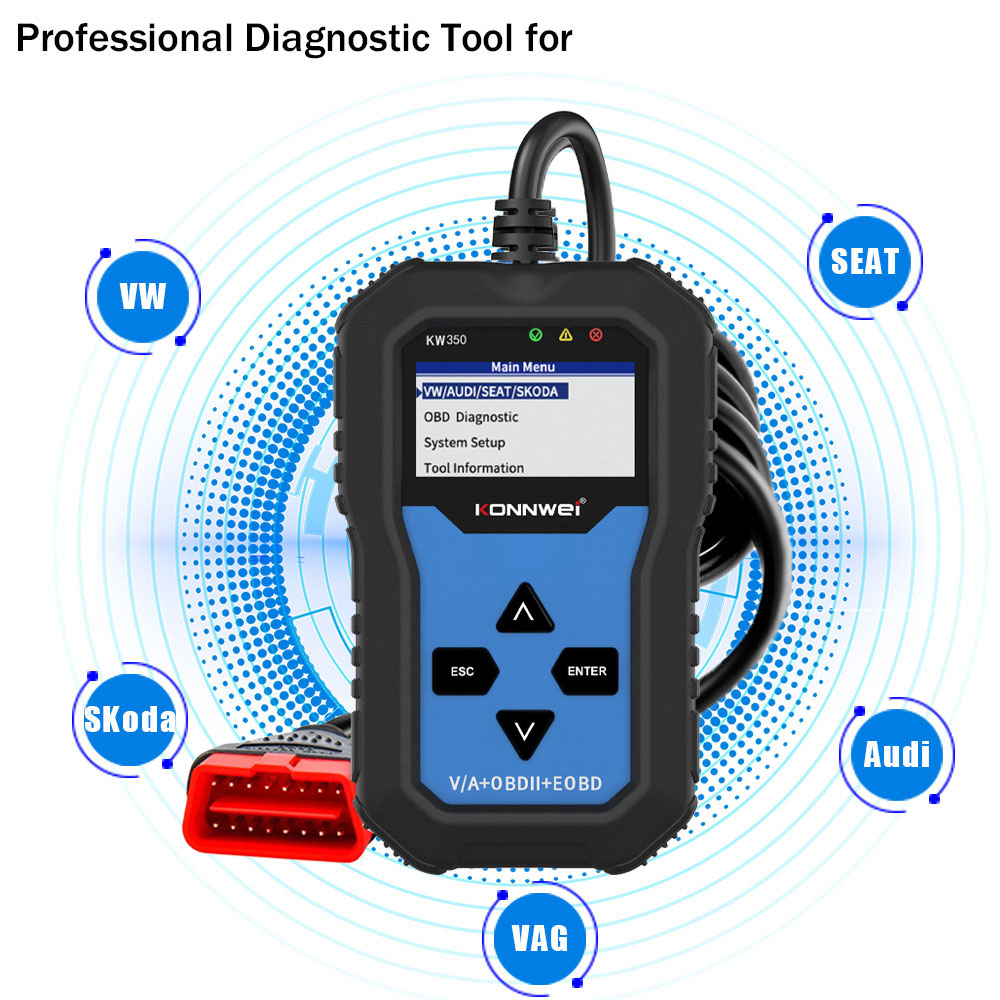

2020 New Arrival VW AUDI SKODA Full System Car Diagnostic Scanner
Diagnosis Machine
KONNWEI KW350 is a good assistant for car owners, you could test
almost all systems of VW/Audi/Skoda/Seat series vehicles, easily
detect nearly 110 systems includes engine, ABS, Airbag,
transmission, radio, climate control, instruments, immobilizer and
so on. It supports not only the KWP, TP-CAN and New UDS protocols,
but also all OBD II protocols. It is small, light, handy and
versatile, it gets data quickly, we believe that you would love it.
KW350 Parameters:
| Item type | Full system car scanner |
| Product Size | 12.7*7.8*2.0cm |
| Installation | Plug and play |
| Display | 2.0 inch black white screen |
| Main function | Read and erase fault codes for VAG cars |
| Other functions | EPB Reset, Oil Service Reset, Battery matching, TPS Check etc |
| Support languages | English,German |
| Support protocols | ISO 9141, KWP2000, SAE J1850, CAN, J1850 VPW, J1850 PWM |
KW350 Specification
1) Display: Backlit, 128 × 64 pixel display with contrast
adjustment
2) Operating Temperature: 0 to 60°C (32 to 140 F°)
3) Storage Temperature: -20 to 70°C (-4 to 158 F°)
4) External Power: 8.0 to 18.0 V power provided via vehicle battery
KW350 Main Functions
- It can read and erase 101 systems fault codes of VW, AUDI, SKODA,
SEAT
101 small systems, e.g.:
Engine, Transmission, SRS Airbag, ABS brakes, Center Lock; EPB Reset, TP Check, Brake booster,
Air Condition HVAC, Steering Wheel; Instruments, Aux .Heat; CAN Gateway, Immobilizer, Tire pressure,
Central Conventor, Throttle Adaptation, Oil Reset, Service Reset, Retrieve vehicels information etc
- 4 special function: Auto oil reset, throttle learning, Brake Pad replacement, Battery
matching
- OBD2 Gift function: with all functions other OBD2 Engine Scanners
have for all OBD2 certified cars
Application
1) Full sytem is suitable for vehicles:
For VW
For AUDI
For SKODA
For SEAT
It matches all the functions of 1551/1552 for VAG
2) Engine system for vehicles:
It Works on all 1996 and newer cars & light trucks that are OBDII compliant (including the VPW, PWM, ISO, KWP 2000 and CAN protocols).
KW350 Suitable Vehicles
1) VW/ AUDI/SKODA/SEAT.
Support all VW, AUDI, SKODA, and SEAT. It matches all the functions
of VAG1551/1552. Adapted to vehicles from 2000 to 2016
2) CAN OBDII.
It Works on all 1996 and newer cars & light trucks that are OBDII
compliant (including the VPW, PWM, ISO, KWP 2000 and CAN
protocols).
Fuctions for Volkswagen Series:
01. MENUCOMM: Engine, Auto_Trans, ABS_Brakes, Auto_HVAC,
Cent_Elect, Airbags, Steering_Wheel, Instruments and so on.
02. MENUDRIV: Engine, DieselPump, AutoTrans, AWD,etc.
03. MENUCHAS: ABSBrakes, Susp_Elect, ChassisControl, Airbags,
SteeringAssist, tire pressure and so on.
04. MENUCOMF: AutoHVAC, PositionSensing, Steering wheel, Aux_Heat,
LaneChange, CentralConv etc.
05. MENUELEC1: Immobilizer, Instruments, Cent_Elect, Navigation,
CANGateway, Towprotection, etc.
06. MENUELEC2: DataTransfer, MediaPlayer, CtrlHeadDash,
Inform_Electr etc.
Top 6 Reasons to get KW350:
1. Delicate and Portable
2. Automatic Scanner System, easy to operate
3. Multilingual Menu: English, German
4. Economical and practical
5. Oil Reset for VW/AUDI/SKODA/SEAT
6. Fast diagnosis and get data quickly
7. Update online free and can print
Packing list:
1*KONNWEI KW350 Scan Tool main unit
1*User Manual in English
1*USB Cable
1*Durable Nylon Storage Case
