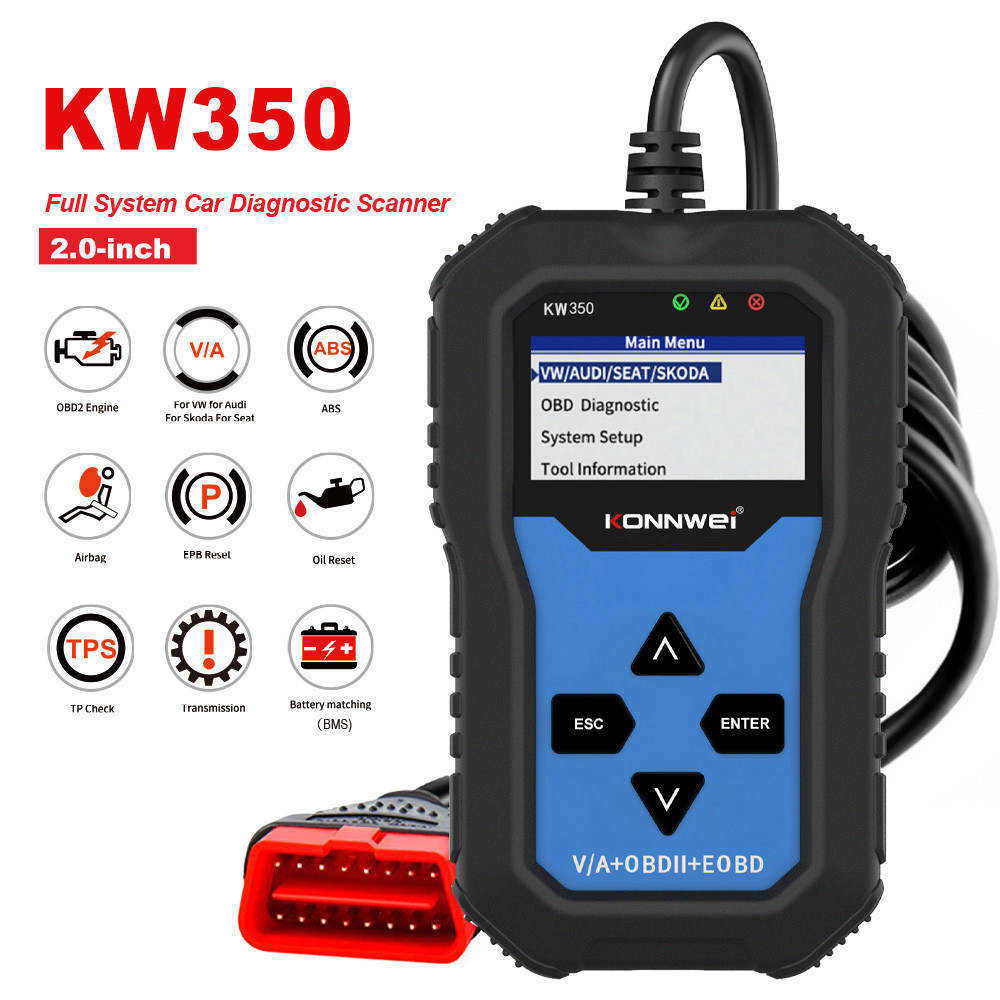

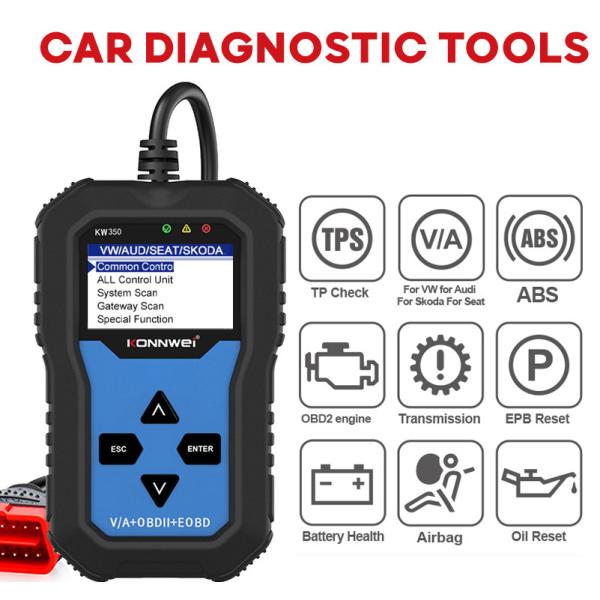

KONNWEI KW350 Full system car diagnostic scanner ABS SRS Transmission engine scanner for Seat Skoda audi vw

KW350 Description:

KW350 Full system diagnostic scanner can work on 101 system on ECU for VAG Series car such as JETTA/Bora/Santana/Sagitar/Magotan/Golf/Beetle/Tiguan/Tourag/Passat/ Fabia/Octavia/Superb, etc.

4 Special Functions: Auto oil reset, throttle learning, Brake Pad Replacement, Battery matching. It is able to shut down the engine, automatic transmission, ABS Brake and SRS airbag, transmission, warning light, engine, Oil Reset, TP Position Check, Brake Pad Reset, power, classis, vehicle body information, air conditioner and others system.etc.

The most importantly ,KW350 Support All 12V Gasoline And Diesel Vehicles /Hybrid Electric Vehicles with OBD2 EOBD Protocol.

It is a Enhanced OBDII scanner that can read and earse the trouble codes that can cause emission problems with your vehicle,

turn off the MIL (check your car engine) and I/M readiness , read data stream, vehicle identification Info (VIN, CIN, CVN).

Built in a DTC lookup library you can find the related code definitions to help you determine if your car needs repair, save you time and money.

In a conclusion: KW350 not only is a full system scanner for VAG series cars but also an engine scanner for most 12V cars from Asia Europe American with obd2 protocol.

Key Parameter:

Feature :

Auto Transmission System
Airbag SRS System
ABS Brakes System
Center Lock System
EPB Reset
Oil Service Reset
Battery matching
TPS Check
Auto Air Condition HVAC
Steering Wheel
Instruments
Aux .Heat
CAN Gateway
Immobilizer
Centr .Locks
Central Cony
Throttle Adaptation
Read & Clear Error Code
Above is Supported For VW for Audi / For Skoda / For Seat etc V/W Series cars .

KW350 also can tested most 12V OBD2 Protocol cars after 1996 .

Fuctions for VAG:

01. MENUCOMM: Engine, Auto_Trans, ABS_Brakes, Auto_HVAC, Cent_Elect, Airbags, Steering_Wheel, Instruments and so on.
02. MENUDRIV: Engnie, Diesel Pump, AutoTrans, AWD etc.
03. MENUCHAS: ABS Brakes, Susp_Elect, Chassis Control, Airbags, Steering Assist, Tire Pressure and so on.
04. MENUCOMF: AutoHVAC, Position Sensing, Steering wheel, Aux_Heat, LaneChange, Central Cony etc.
05. MENUELEC1: Immobilizer, Instruments, Cent_Elect, Navigation, CAN Gateway, Tow protection etc.
06. MENUELEC2: Data Transfer, Media Player, CtrlHeadDash, Inform_Electr etc.

Application :
1) Full sytem is suitable for vehicles:

For VW

For AUDI

For SKODA

For SEAT
It matches all the functions of 1551/1552 for VAG

2) Engine system for vehicles:

It Works on all 1996 and newer cars & light trucks that are OBDII compliant (including the VPW, PWM, ISO, KWP 2000 and CAN protocols).

KW350 Specification :

1) Display: Backlit, 128 × 64 pixel display with contrast adjustment
2) Operating Temperature: 0 to 60°C (32 to 140 F°)
3) Storage Temperature: -20 to 70°C (-4 to 158 F°)
4) External Power: 8.0 to 18.0 V power provided via vehicle battery
5) Dimensions: 12.7*7.8*2.0cm

Packing list:

1* KONNWEI KW350 Scan Tool

1* User Manual in English

1* USB Cable

1* Durable Nylon Storage Case
