OBD2 MINI Diagnostic Code Scanner Konnwei KW901 Bluetooth 3.0

Highlight:

Small size, compact structure.
Stable wireless connection
No wires or batteries (adapter is powered by the diagnosis size sockets)
Stop communication, wait half an hour, auto sleep
Supports all OBDII protocols
The adapter uses the fastest and most reliable 25K80 chips

With kw901 you will be able to perform a complete computer diagnostics car
and even to correct minor faults without resorting to service stations.
kw901 scantool is a high-quality automotive scanning tool, supports all OBD-II
The device is a small adapter that plugged into the vehicle OBD-connector.


With proper software installed in the host device, you may have following parameters read out from your vehicle:

1. Measure the fuel consumption
2. Display real-time operating performance of the car, such as momentum,vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
3. Turn off the MIL (signal Check Engine)
4. Download data to external media in a variety of formats for later printing
5. Record various parameters, display graphics in real time, and more

Key parameter:

KW901 WIFI Specifications:

Compatability:OBD2
Country/Region of Manufacture: China
Supply voltage(VDD):12V
Work temperature range: -20 ~ +70degree
Storage temperature range:-40 ~ +125degree
RF sensitivity(Basic Rate): -85db
Modulation Mode:GFSK
Frequency Range:2402 ~ 2480MHZ
Transmission Range:10M
Bluetooth Profile:SPP
UART Params:38400,8,n,1

Application :

1. Konnwei KW901 bluetooth Used For All 12V Gasoline And Diesel Car After 1996 With OBD2 EOBD Protocol

2. Konnwei KW901 bluetoothSupport the following 9 Protocol :

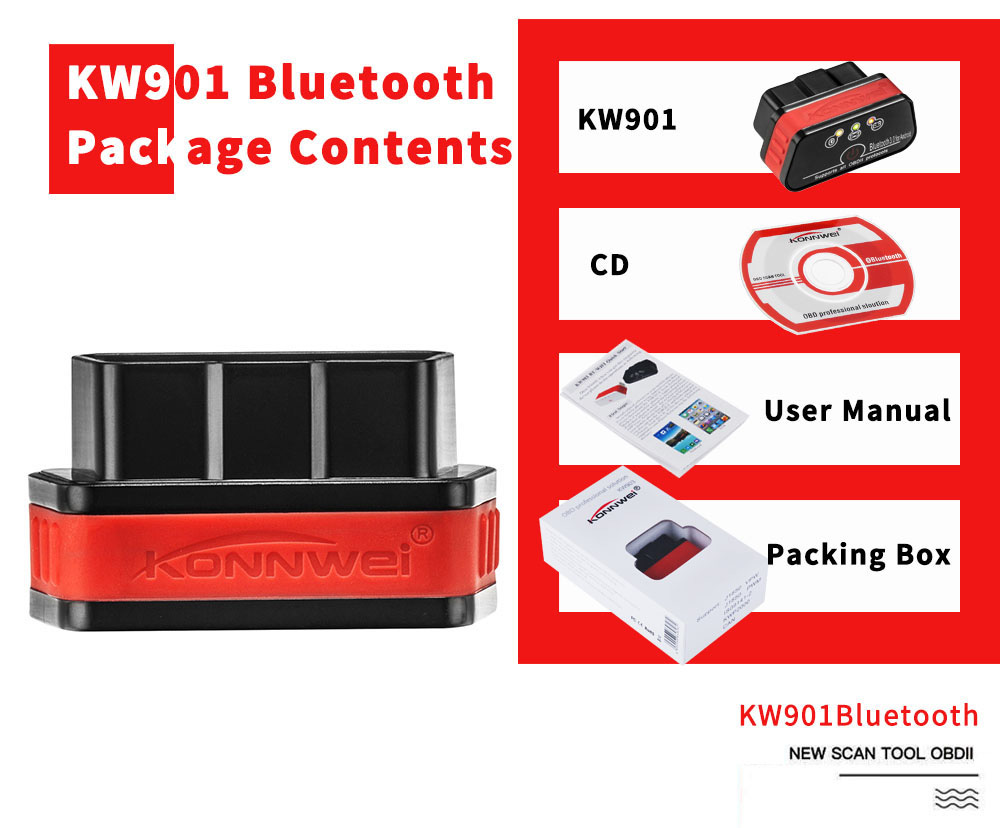

Packing list:

1 * KW901
1 * User's manual
1 * CD
