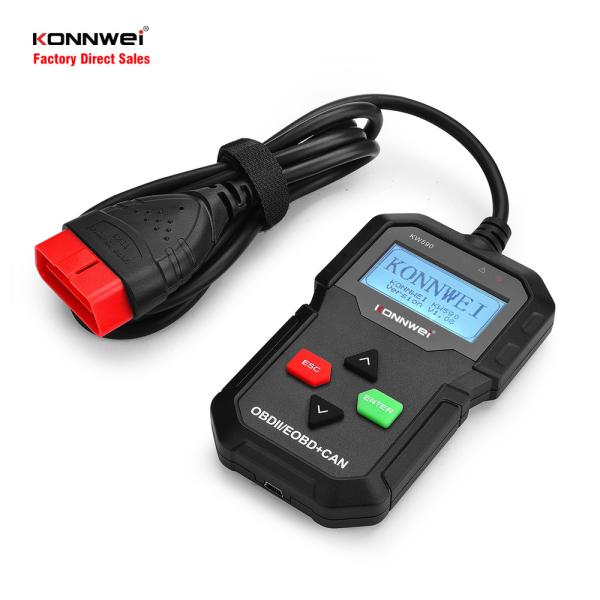

KONNWEI KW590 OBD2 car diagnostic tool read and clear fault codes
free upgrade 7 languages
Description:
FINISHED BY PREMIUM MATERIAL & UNIQUE DESIGN: Portable Anti-slip
Design and 4.7 Feet Long Diagnostic Cable Allow You to Perform a
Professional Diagnostics In or Out of Your Vehicle. Large LCD
Display and Four Logical Buttons, Easily Operate and Indicates Test
Results Directly. No Need any Battery, Will Get power From Vehicle
When Connected. WARRANTY: 1-YEAR NON-RISK PURCHASE!
Professional OBDII CAR ENGINE DIAGNOSTIC SCANNER TOOL: KONNWEI
KW590 OBD2 Diagnostic Tool Is Designed for Engine System, It Can
Fast Read and Clear Vehicle Engine Trouble Codes, Turn off The
CHECK ENGINE LIGHT (MIL). Easy to Operate, Even a Beginner Can
Easily Use to Find Out What the Problem Is About Car Engine System
and Perhaps Fix It. Absolutely Saving Time and Money When You Can
Diagnose The Car By Yourself Anytime and Anywhere.
Key Parameter:
| Item Type | KW590 OBDII auto scan tool |
| Function | Read and erase Vehicle Engine Trouble Codes fast |
| Feature | Support free system upgrade, print data out via PC |
| Support protocol | ISO 9141, KWP2000, SAE J1850, CAN,J1850 VPW,J1850 PWM, |
| Display mode | 2.0 inches Backlit screen |
| Material | ABS |
| Language | English, French, German, Dutch, Spanish, Russian,Portuguese. |
| Color | Red and Black optional |
| support system | XP WIN7 WIN8 WIN10 |
Functions:
1. Features the unique patented One-Click I/M Readiness Key for
quick State Emissions readiness check and drive cycle verification
2. Bright color coded LEDs and built in speaker provide both visual
and audible indication for readiness verification
3. Retrieves generic (P0, P2, P3, and U0), manufacturer specific
(P1, P3, and U1) codes, and pending codes
4. Precisely and qiuckly determines the cause of the Malfunction
Indicator Light( MIL)
5. Turns off Malfunction Indicator Light (MIL), clears codes and
resets monitors
6. Displays DTC definitions on the TFT color screen
7. Views freeze frame data
8. Displays monitor and I/M readiness status (emissions) , reads
live PCM datastream
9. Retrieves vehicle information(VIN, CIN and CVN)
10. Multilingual menu and DTC definitions,English, French, German,
Dutch, Spanish, Russian,Portuguese.
11. Extremely easy to use and highly reliable
12. Support Internet updateable free life time and printed via PC
Specification:
Display:Backlit m 128*64 pixel display with contrast adjustment
Operating Temperature: 0 to 60 ℃ (32 to 140 ℉)
Storage Temperature: -20 to 70 ℃ (-4 to 158 ℉)
Power: 8 to 18 V provided via vehicle
Externel Power : 8.0 to 18.0 V power provided via vehicle battery
Dimensions: 127mm (5in) x 78mm (3.07 '') x 20mm (0.79'')
Weight: 0.4KG
Support Protocol:
ISO 9141, KWP2000, SAE J1850, CAN,J1850 VPW,J1850 PWM,
| 1) ISO9141-2(5 baud init,10.4Kbaud) |
| 2) ISO14230-4 KWP(5 baud init,10.4Kbaud) |
| 3) ISO14230-4 KWP(fast init,10.4Kbaud) |
| 4) ISO15765-4CAN(11bit ID,500 Kbaud) |
| 5) ISO15765-4CAN(29bit ID,500 Kbaud) |
| 6) ISO15765-4CAN(11bit ID,250 Kbaud) |
| 7) ISO15765-4CAN(29bit ID,250 Kbaud) |
| 8) SAE J1850 PWM (41.6 Kbaud) |
| 9) SAE J1850 VPW (10.4 Kbaud) |
Package list:
1pc x KW590 Super OBD2 scan tool
1pc x 1500mm length OBDII Connecting Cable
1pc x COM Cable for connect KW590 to PC
1pc x User Manual
Pictures:
Recommend Product :
| IC chip | STM32F103VCT6 |
| Main function | Read and erase all BOD2 engine fault codes |
| Display Mode | 2.8 inch TFT HD color screen(320 x 240 dpi), built-in speaker |
| Feature | upgrade system online life time free print data |
| Language | Support 8 languages |
| Support System | XP WIN7 WIN8 WIN10 |
| Certificate | CE FCC ROHS MSDS REACH |
| color | Black & Red optional |
