Car OBD2 EOBD CAN Diagnostic tool KW818 12V Battery Tester life
time free upgrade Print data via pc
Description:
KONNWEI KW818 OBDII/EOBD Scanner supports diesel and gasoline
vehicles and all 10 modes of OBDII test for a complete engine
system and battery diagnosis. Featuring the unique patented
One-Click I/M Readiness Key, TFT 2.8 inches color display and
built-in speaker, the KW818 is truly the ultimate in quality and
affordability, allowing users to do their jobs faster, saving time
and money.In addition, thousands of troubleshooter code tips help
technicians to save diagnosis and repair time.
Key Parameter:
| Product Name | KW818 OBDII scan tool |
| Application | 12v both diesel and gasoline vehicles OBD2 EOBD CAN protocol |
| Housing material | ABS |
| Function1 | Read and erase fault codes, read live sensor data |
| Function2 | Battery status check |
| Display | 2.8inchs screen and built-in speaker |
| Feature | print data and free upgrade via PC |
| Color | Black & Red optional |
| Languages | English, Spanish, French, Russian,German, Dutch |
Scanner Features & Functions:
*Works on all 1996 and later OBDII compliant US, European and Asian
vehicles
*Easily determines the cause of the Check Engine Light ( MIL)
*Retrieves generic (P0, P2, P3, and U0) and manufacturer specific
(P1, P3, and U1) codes
*Turns off Check Engine Light (MIL), clears codes and resets
monitors
*Displays DTC definitions on unit screen
*Views freeze frame data
*Displays monitor and I/M readiness status (emissions)
*Identifies pending codes
*Displays live O2 sensor test data
*Graphs data C (1996 and newer)
*Reads, stores & playbacks live sensor data
*Memory/battery backup for off-vehicle data review and analysis
*Multilingual menu:--- English, Spanish, French, German, Dutch,
Russian
*Performs modules present test
*Retrieves vehicle information (VIN, CIN and CVN)
*Supports CAN (Controller Area Network) and all other current
*Built-in OBD-II DTC lookup library
*Large easy-to-read backlit LCD screen
*Software upgradeable via internet
*Prints data via PC
Application :
KW818 support the following 9 Protocol :
| 1) ISO9141-2(5 baud init,10.4Kbaud) |
| 2) ISO14230-4 KWP(5 baud init,10.4Kbaud) |
| 3) ISO14230-4 KWP(fast init,10.4Kbaud) |
| 4) ISO15765-4CAN(11bit ID,500 Kbaud) |
| 5) ISO15765-4CAN(29bit ID,500 Kbaud) |
| 6) ISO15765-4CAN(11bit ID,250 Kbaud) |
| 7) ISO15765-4CAN(29bit ID,250 Kbaud) |
| 8) SAE J1850 PWM (41.6 Kbaud) |
| 9) SAE J1850 VPW (10.4 Kbaud) |
KW850 Prints out data to PC:
1. After install the "uplink" program on PC, connect the scanner to
PC with USB cable. (No need to press any buttons)
2. Launch the program"uplink" , Select "Print" option.
3. Operation on scanner: go to main menu, select " Print Data" ;
Select the data option that you want to print to PC,
4. After select the "print data", the data stream that storaged in
the scanner will be sent to PC software, you may modify them before
printing them out from PC's printer.

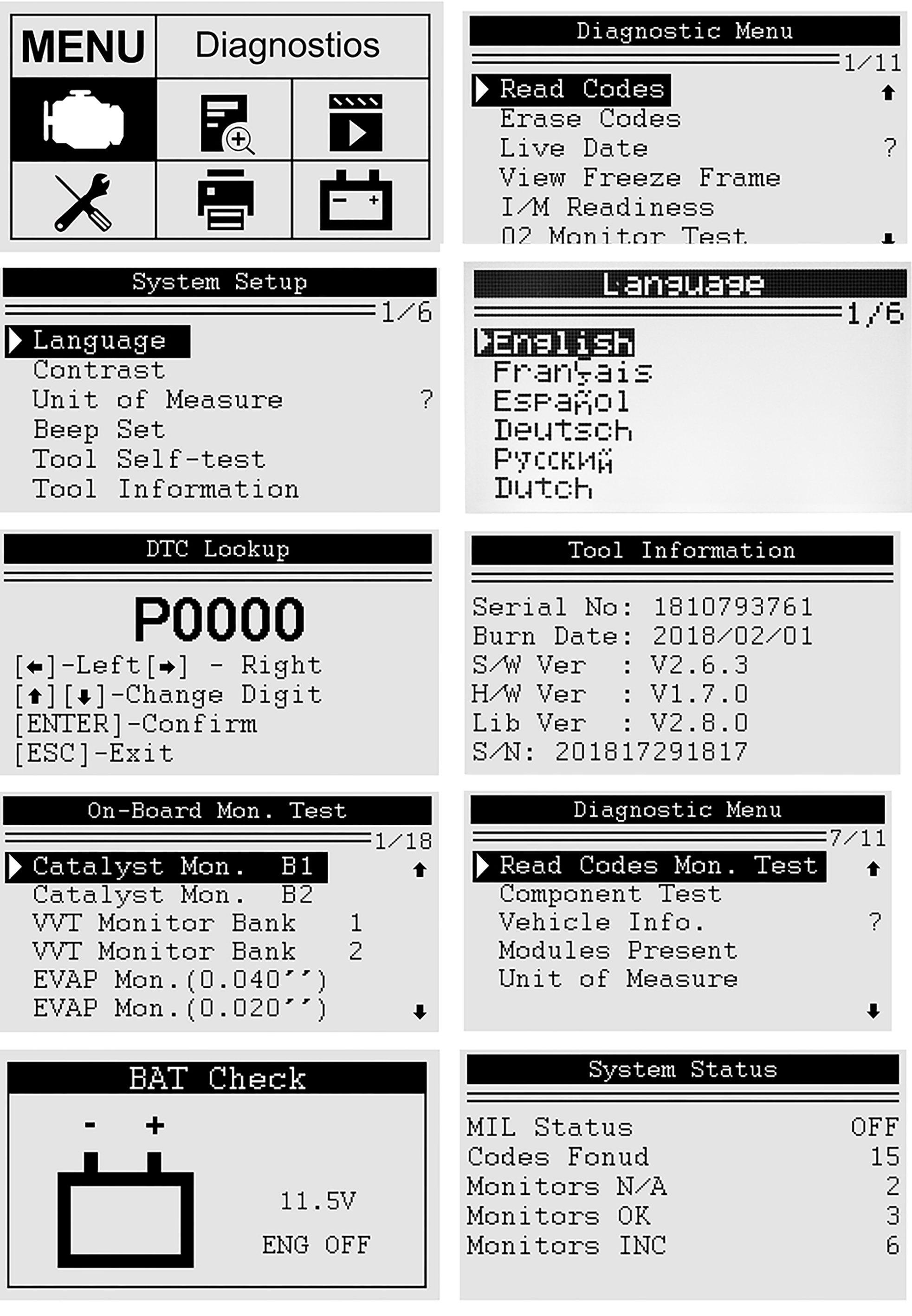

Pictures for you to know more about KW818:
Product Ranges:
12V Car Battery Tester; OBD2 Engine Scanner;
OBD2 Bluetooth; OBD2 WIFI Code Reader;
Engine Transmission SRS Airbag ABS Full System Scanner
Car Battery tester 12V
KW210 KW210 battery load tester battery tester digital battery
analyzer
Full System Diagnostic Scanner
KW350 SRS ABS Transmission Engine Oil Reset Navigation Car Scanner
for VAG
OBD2 Engine Auto Diagnostic Tool
KW850 KW850 OBD2 Scanner car diagnostic tool
KW830 KONNWEI KW830 OBD2 diagnostic scanner for cars petrol diesel
KW808 KONNWEI KW808 obd 2 scanner MS509 diagnostic+tools
KW680 KW680 diagnostic tools obd2 car scanner
KW590 Auto diagnostic scanner tool automotive exhaust gas analyzer
KW818 KW818 auto diagnostic tool obd 2
KW820 KW820 car scanner obd Universal OBD2
ELM327 OBD2 Scanner/Mini wifi obd2 code reader/Bluetooth 3.0 car
scanner device
KW901 KW901 Android obd2 Bluetooth
obd2 WIFI hotspot Android iOS code reader
KW902 KW902 ELM327 bluetooth OBD2 V1.5
WIFI obd 2 scanner diagnostic tool
Mark : WIFI obd2 scanner work for Android and iOS by Torque and
Dashcommand;
Bluetooth obd2 scan tool only work for Android by Torque
