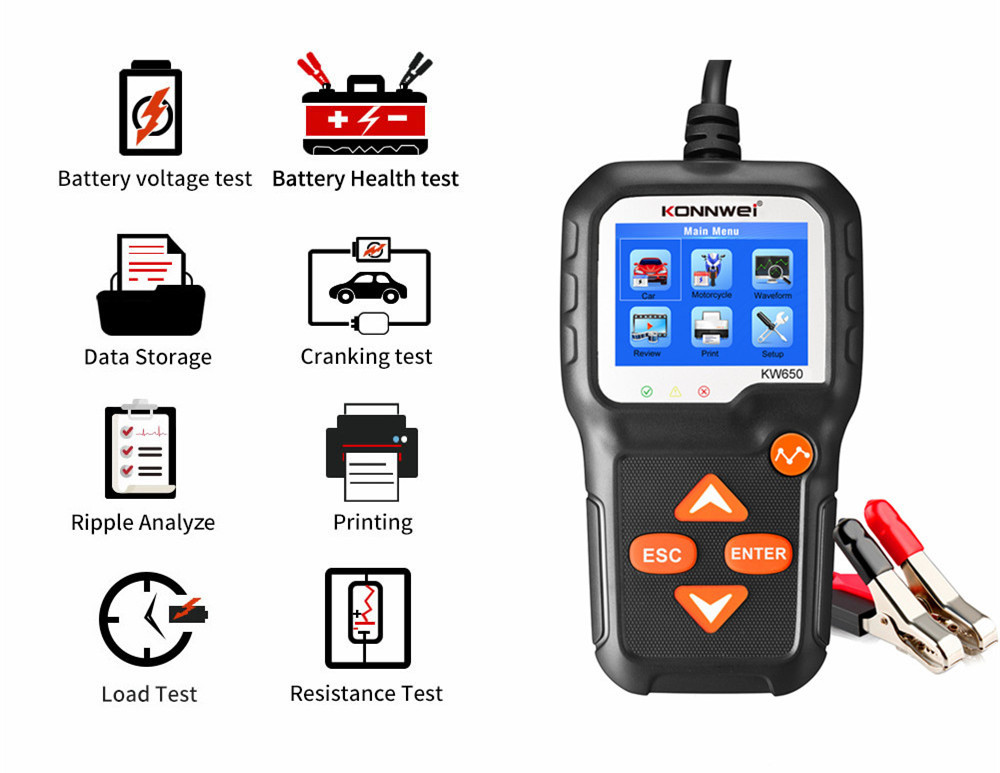

KONNWEI KW650 Battery analyzer 6-16V vehicle motorcycle battery
test results good, recharge,replace
Product Name: KW650
KONNWEI KW650 battery tester is the newest battery tester upgraded
from the black-white screen tester, in order to check battery
health faster and more accurately, including check the alternator
working status.
Not only support Battery Health Test, but also Battery Cranking
Test, BatteryCharging Test.
It's a professional automotive battery diagnostic tools for your
battery issues by the graphing voltage monitoring tool, with its
2.4 inch color screen and unique pattern design.
the KONNWEI KW650 is a perfect battery testing tool for you.
Key Parameter:
| Item Type | Diagnostic Tools BatteryTester |
| IC chip | SMT32F103C8T6 Chip solution |
| Function1 | Battery test&Cranking test&Charging test |
| Function2 | Test Result Good, Recharge or Replace |
| Color | Black only |
| Display | 2.4 inch LCD colorful screen |
| Language | 13 international languages |
| Support system | XP WIN7 WIN8 WIN10 |
| Feature | Support free system upgrade and print data on PC |
| Power requirement | No internal batteries required |
| Material | ABS housing |
Key Functions :
Volts and Voltage test in waveform
Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information
relative to battery rating.
Internal resistance value (mΩ) and Life in percentage (%)
Cranking system and Charging system
Record and re-play battery data, Life-time free update service
Battery test, cranking test, charging test and other additional
functions.
Support Languages: Chinese, English, German, French, Japanese,
Korean, Dutch, Russian, Spanish, Italian, Portuguese, Polish,
Persian.
Advantages:
- TOP battery tester on Aliexpress
- Color screen battery tester
- Imported STM32103VCT6 Chip.
- Graphical battery test results.
- U-I waveform, also can be printed out
- Test results storage and review.
- Battery report can be printed out on PC.
- Support free update online lifetime.
Support:
Battery types:
Regular flooded battery, will support AGM flat plate battery, AGM
spiral battery, GEL and EFB battery in the future after updating.
Battery Standards:
CCA:100-2000 / BCI:100-2000 / CA:100-2000 / MCA:100-2000.
JIS:26A17-245H52 / DIN:100-1400 / IEC:100-1400 / EN:100-2000
/SAE:100-2000.
Specification:
System Voltage: 6-16 Volts.
Input Voltage Range: 6V-16V.
No internal batteries required.
Operating Temperatuer: 0℃-50℃.
Storage Temperature: -20℃-70℃.
Package includes:
1*KONNWEI KW650 Auto Diagnostic Scanner
1*Mini USB cable
1*User’s Manual
1*packing box
1*nylon bag
