Car diagnostic tool KONNWEI KW902 Bluetooth ELM327 OBD2 EOBD Fault
Code Scanner
KW902 description:
The device is a small mini scanner that plugged into the vehicle
OBD-connector. On bluetooth, it connects to any computer, tablet or
smartphone, With associated diagnostic procedures . Doing these
simple operations, you will be able:
1.Read diagnostic trouble codes, both generic and
manufacturer-specific
2.Over 3000 generic code definitions in the database
3.Clear trouble codes and turn off the MIL ("Check Engine" light)
4.Display current sensor data, including:Engine RPM,Calculated Load
Value,Coolant Temperature,Fuel System Status,car Speed,short Term
Fuel Trim
Key parameters:
| Brand | KONNWEI |
| Product name | KW902 ELM 327 BT wireless scanner |
| Chip | 25K80 |
| Language | English defaulted and can select the language you need |
| Main Function | precisely analyze and display vehice performance |
| Feature | For all 12V cars OBD2 certified |
| Connection Type | BT wireless 3.0 |
| Auxiliary phone software | Torque |
| color | Five color for choice |
| Warranty | 12 mouths |
Function:
On BT wireless, it connects to any computer, tablet or smart phone,
With associated diagnostic procedures . Doing these simple
operations, you will be able Measure the fuel consumption.
1.Display real-time operating performance of the car, such as
momentum,vehicle speed, oil pressure, coolant temperature, engine
load, intake manifold pressure, throttle position, the values of
oxygen sensors, air intake temperature, and more.
2.Turn off the MIL (signal Check Engine).
3.Download data to external media in a variety of formats for later
printing.
4.Record various parameters, display graphics in real time, and
more.
Features:
- Supply voltage(VDD):12V
- Work temperature range: -20 ~ +70C
- Storage temperature range:-40 ~ +125C
- RF sensitivity(Basic Rate): -85db
- Modulation Mode:GFSK
- Frequency Range:2402 ~ 2480MHZ
- Transmission Range:10M
- Bluetooth Profile:SPP
- UART Params:38400,8,n,1
- Small size, compact structure. Plug and never unplug
- Stable wireless connection
- No wires or batteries (adapter is powered by the diagnosis size
sockets)
- Stop communication, wait half an hour, auto sleep
- Supports all OBDII protocols
- The adapter uses the fastest and most reliable ARM chips
Supports protocol and language:
| 0)Automatic |
| 1) ISO9141-2(5 baud init,10.4Kbaud) |
| 2) ISO14230-4 KWP(5 baud init,10.4Kbaud) |
| 3) ISO14230-4 KWP(fast init,10.4Kbaud) |
| 4) ISO15765-4CAN(11bit ID,500 Kbaud) |
| 5) ISO15765-4CAN(29bit ID,500 Kbaud) |
| 6) ISO15765-4CAN(11bit ID,250 Kbaud) |
| 7) ISO15765-4CAN(29bit ID,250 Kbaud) |
| 8) SAE J1850 PWM (41.6 Kbaud) |
| 9) SAE J1850 VPW (10.4 Kbaud) |
| 10)default settings(user adjustable) |
- These software support a lot of languages, like Russian, Spanish,
French, German, English, Italian, Portuguese...etc.

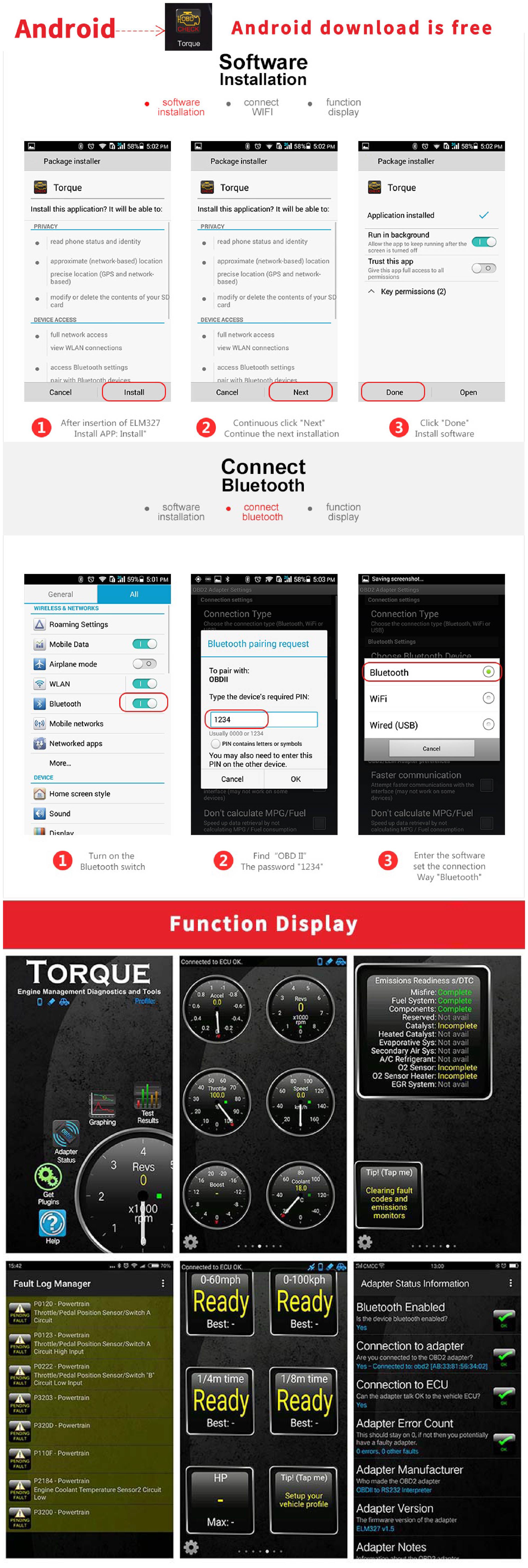

( you can download the app : For Torque, to see whether it include
your country language.)
Package includes:
KW902 bluetooth scnaner pictures :
