KW903 wifi Car Diagnostic Scanner OBDII Fault Codes reder WIFI Hotspot Six color

KW902 description:

Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode,konnwei kw903 is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode.

It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with CLK. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained.

Parameters:

Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific.

2.Display their meaning (over 3000 generic code definitions in the database).

3.Clear trouble codes and turn off the MIL ("Check Engine" light)

4.Display current sensor data, including:

5.Engine RPM

6.Calculated Load Value

7.Coolant Temperature

8.Fuel System Status

9.Vehicle Speed

10.Short Term Fuel Trim

Specifications:

SSID: CLKDevices

Port: 35000

Range: 50 ft (Line of sight)

Antenna: Internal

Power Consumption: 0.75 Watts (With Power Switch)

Wifi Standard: 802.11a/b/g

Operating Temperature: -15 to 100 Deg Celsius

Plastic: Automotive Grade

Physical Dimensions: 2.75 x 1.25 x 1.2 inches

Package includes:

1x KW902 obd2 wifi hotspot
1x Software CD
1x English User Manual

Support Protocol:

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)

FAQ:

Q1: Can I make a sample order for KONNWEI obd2 wifi hotspot?
A1: Yes, sample order is welcome for quality test. Mixed samples are also acceptable.

Q2: What is the lead time?
A2: Samples have stocks ready for shipment, bulk order needs 5-7 days.

Q3: What's your MOQ for order?
A3: The MOQ for KONNWEI brand is only 1pc and if need customize your own brand, it's 500~1000pcs depends on models.

Q4: How do you ship the goods and how long does it take to arrive?
A4: Usually shipping by express like DHL, UPS, FedEX, taking about 4-6 days or by boat about 25-30 days according to the Country you are in.

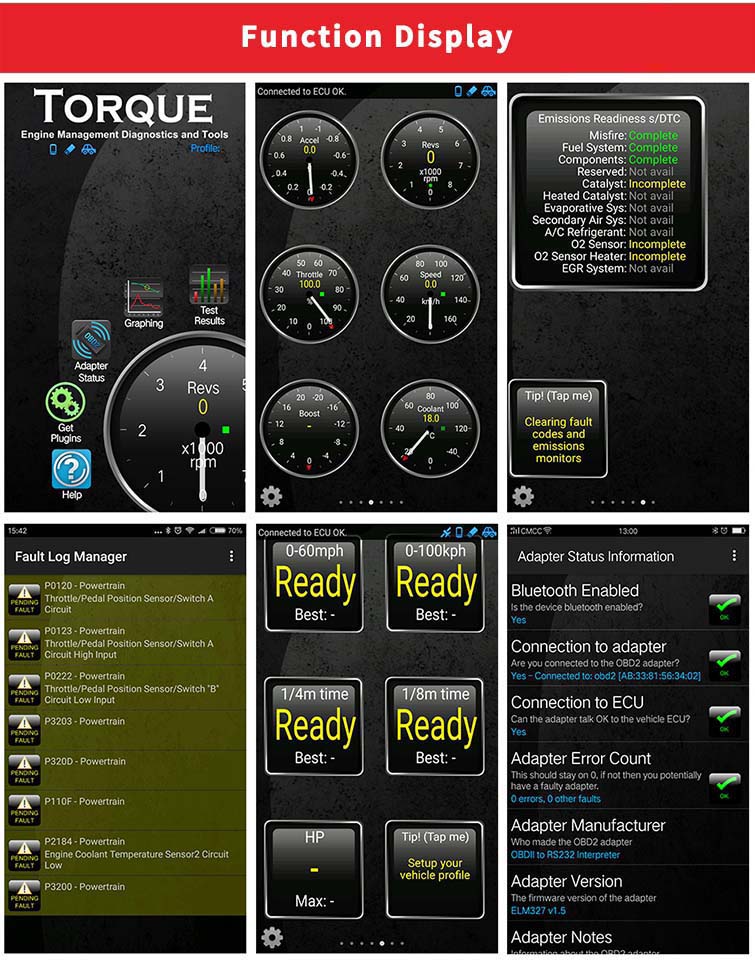

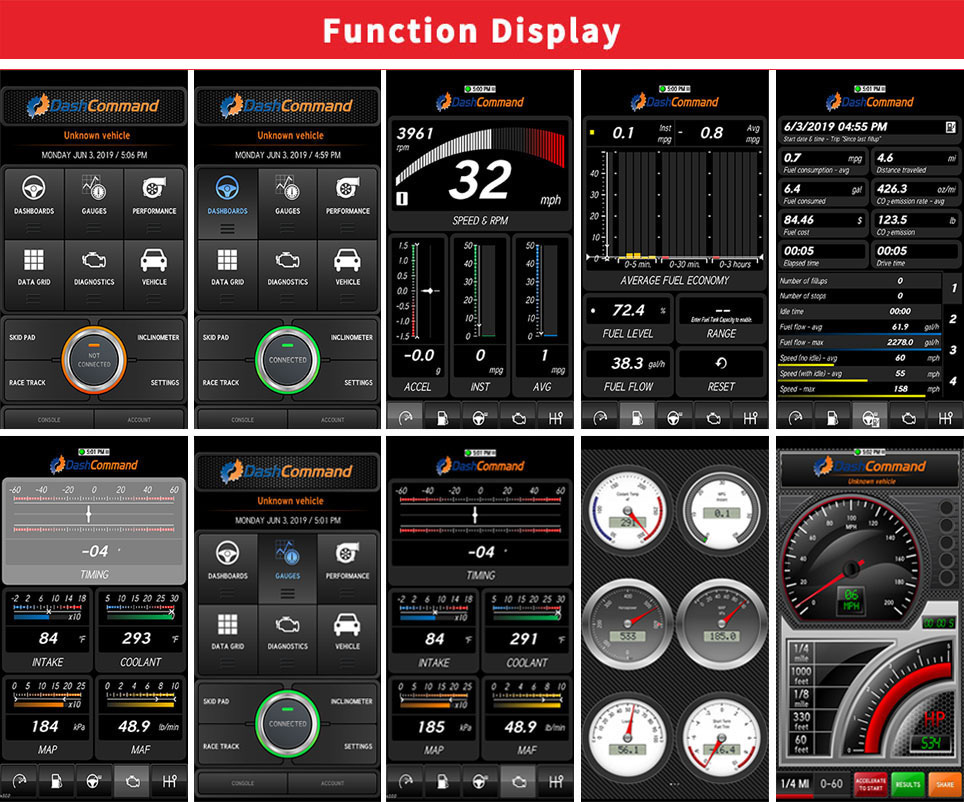

KW903 pictures :
