KONNWEI KW210 8-16V Car Battery Tester Vehicle Battery Analyzer

konnwei catalog-official- new arrival.pdf

description:

Name: KONNWEI KW210 Auto Battery Analyzer For All 12V Cars

The KONNWEI KW210 12V car battery tester is able to effectively analyze and read important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health and charge status.

[ACCURATE MEASUREMENTS] This professional automotive battery tester provides accurate results, calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repairing.

[WIDELY COMPATIBLE] Beginner or expert, this car battery diagnostic tester can be used with a wide selection of 12V 100-2000 CCA regular flooded batteries, AGM flat plate, AGM spiral, as well as GEL batteries.

[EXTRA FEATURES] The KW210car battery tester displays test results in text and graphing, displaying the real-time battery voltage in a waveform. With an intelligent 2.4” backlit and STM-32 main chip, reading access is practical and rapid! Lifetime update service is supported by KONNWEI BTlink app

Parameter:

Function :

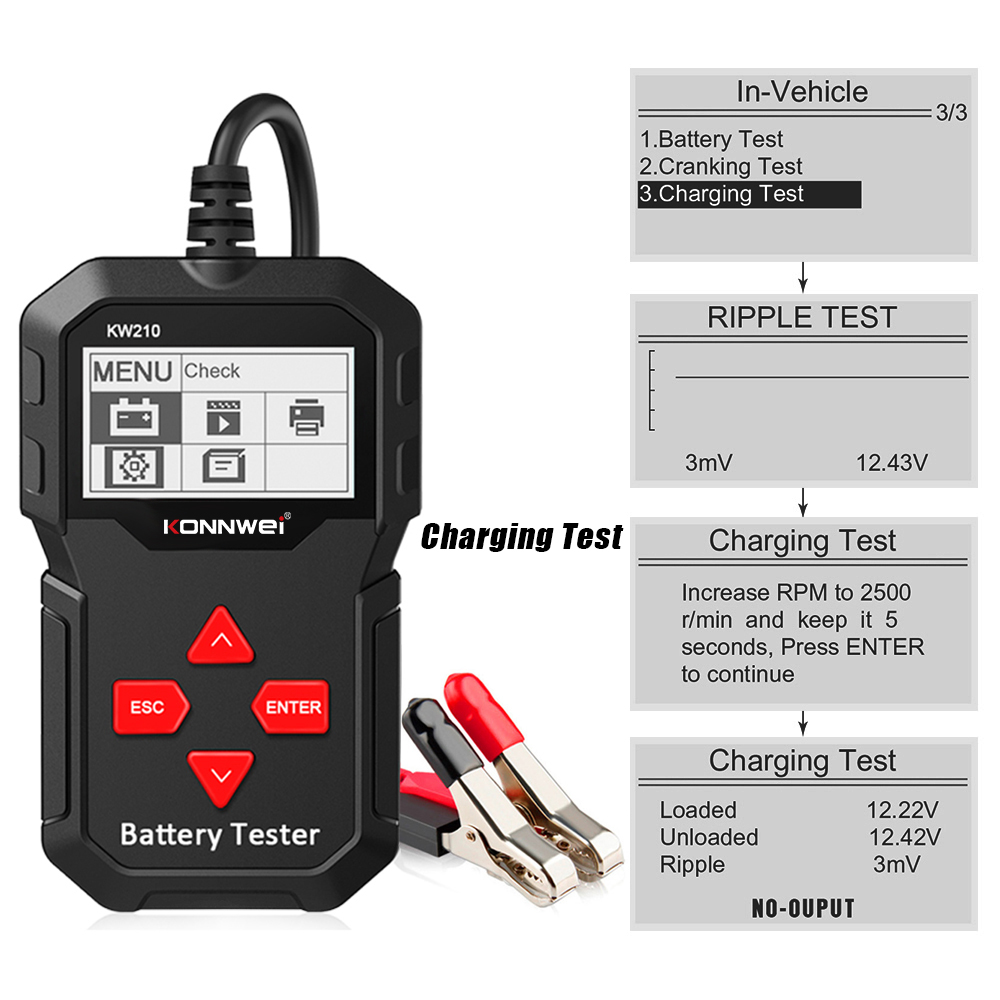

1. System voltage 12 Volts and Voltage test in waveform
2. Test Result Good, Recharge or Replace
3. Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
4. Internal resistance value (mΩ) and Life in percentage (%)
5. Cranking system and Charging system
6. Record and re-play battery data, Life-time free update service
7. Battery test, cranking test, charging test, and other additional functions.

The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and IEC are supported

Feature :

Measure Standard ,CCA 100-2000 ,BCI 100-2000 ,CA 100-2000 ,MCA 100-2000,

JIS 26A17-24SH52 ,DIN 100-1400 ,IEC 100-1400 ,EN 100-2000 ,SAE 100-2000,

GB 100-1400,System Voltage 12 Volts ,Input Voltage Range 8V-16V ,Power Requirements are no internal batteries required,Power on when hooked up during testing.

Specifications :

12Display: Color TFT LCD Screen

13.System Voltage:12 Volts

14.Input Voltage Range:8V-16V

15.Power Requirements: No internal batteries required.

16.Power on when hooked up during testing.

17.Operating Temperature:0℃-50℃

18.Storage Temperature:-20℃-70℃

Support 8 Languages : English, German, French, Dutch, Russian, Spanish, Italian ,Portuguese

Application and support battery standard:

Use a test a wide range of 12v batteries(Starting{SLI},Deep Cycled and Marine) of Wet(Flooded),VRLA or Maintenance Free (MF),Sealed Maintenance Free (SMF), Absorption Glass Mat(AGM),EFB and GEL Cell.

The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and IEC are supported.

1.Measure Standard

2.CCA:100-2000

3.BCI:100-2000

4.CA:100-2000

5.MCA:100-2000

6.JIS:26A17-24SH52

7.DIN:100-1400

8.IEC:100-1400

9.EN:100-2000

10SAE:100-2000

11.GB:100-1400

Package includes:

1*KONNWEI KW210 Auto Diagnostic Scanner

1*Mini USB cable

1*User’s Manual

1 *Nylon bag
