    CE FCC KW450 SAS Engine Live Data Scanner Diagnostic Tool For VW Audi

    Ask Lasest Price
    Brand Name : konnwei
    Model Number : KW450
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, Visa, Paypal, L/C, D/A, D/P
    Supply Ability : 50,000pcs obd2 scanner codes per month
    Delivery Time : for samples, stocks are available; 5000pcs obd2 scanner codes in a week
    • Product Details
    • Company Profile

    CE FCC KW450 SAS Engine Live Data Scanner Diagnostic Tool For VW Audi

    Live Data Scanner Diagnostic Tool Automotive Code Readers For Vw Audi Cars


    KW450 obd2 scanner tool parameters:


    Item typeKW450 automotive diagnostic scanner
    DisplayTFT color display
    Operating Temperature0 to 60°C (32 to 140 F° )
    Storage Temperature-20 to 70°C (-4 to 158 F° )
    Dimensions(L,W,H)199 x 105 x 38 mm
    Weight0.5kg
    Housing materialABS
    ChipImported STM32F103VCT6
    Support systemXP WIN7 WIN8 WIN10
    Support modelsFor VAG OBD2/EOBD Protocols
    Support protocolsCAN, J1850 VPW, J1850 PWM, ISO 9141, KWP2000, SAE J1850

    KW450 Description:


    KW450 is a car diagnostic tool for Vag. It supports full system(Engine, transmission, abs brake, srs airbag) for VW/AUDI. It can read/erase fault code, read live data, BAT check, oil reset, EPB reset and so on.


    It's OBDII/EOBD Scanner supports all 10 modes of OBDII test for a complete diagnosis. Featuring the unique patented One-Click

    I/M Readiness Key, TFT color display and built-in speaker, the KW450 is truly the ultimate in power and affordability, allowing users

    to do their jobs faster. In addition, thousands of troubleshooter code tips help technicians to save diagnosis and repair time.

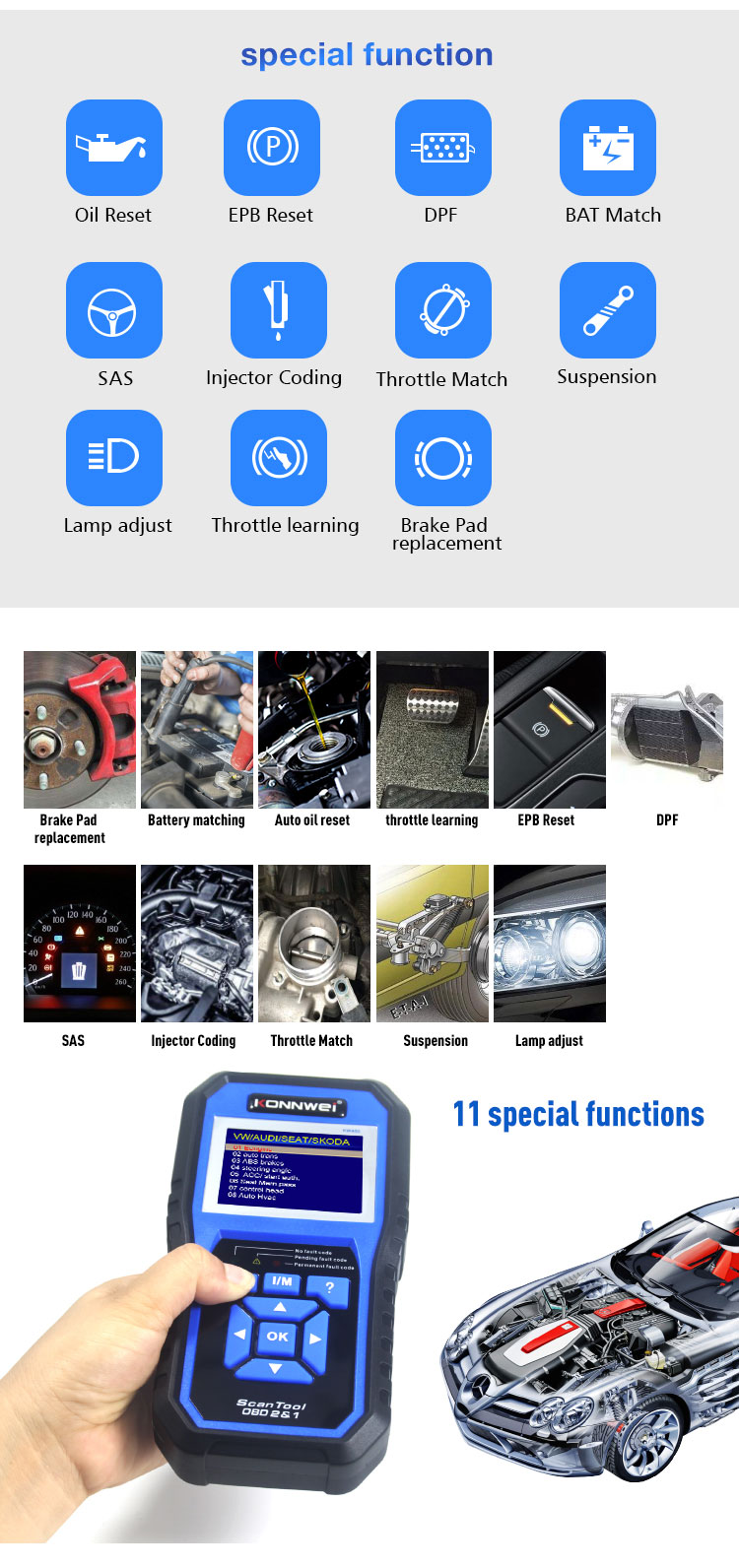

    KW450 Function:


    1) Read Codes
    2) Erase Codes
    3) Live Data
    4) View Freeze Frame
    5) I/M Readiness
    6) O2 Monitor Test
    7) On-Board Monitor Test
    8) Component Test
    9) Vehicle Info
    10 ) BAT Check
    11 ) Modules Present
    12 ) DTC Lookup
    13 ) Review Data
    14 ) Print Data
    15) Oil Reset
    16) EPB Reset
    17) DPF
    ....

    Packing List:


    1*KW450 obd obd2 scanner
    1*User's Manual in English
    1*OBD2 Cable
    1*USB Cable
    1*Protective Polyester Bag


    KW450 Engine Code Reader Vehicle Coverage:


    It is for vw, audi, seat, skoda full system. The scan tool is specially designed to work with all OBD II compliant vehicles, including control area network (CAN), it is required by EPA that all 1996 and newer vehicles (Cars and light trucks) sold in the united states must be OBD II compliant and this includes all american, asian and European vehicles.

    KW450 Car Code Reader Update Method:


    To update your tool, you need the following items.
    1. scan tool
    2. A PC or laptop with USB ports
    3. USB cable
    1) Download the applicationUPlink.exefrom our website: www.konnwei.com
    2) Run UPlink.exe in your computer(Mac iOS and Linux does not compatible)
    3) Pressany button until the USB cable is connected with computer and release it after the tool display a message“Update mode"
    4) Open the UPlink software, click "Check Update" button, will download the upgrade file from the internet then update to tester tool
    5) Wait for few minutes until update succeed
    6) After the update is completed, restart tester tool finish

    More pictures of KW450
